APOLLO

Water Tanks / Stainless Steel Water Tanks

APOLLO DHW80 Stainless Indirect Water Heater Tank

AP-DHW80

Product overview

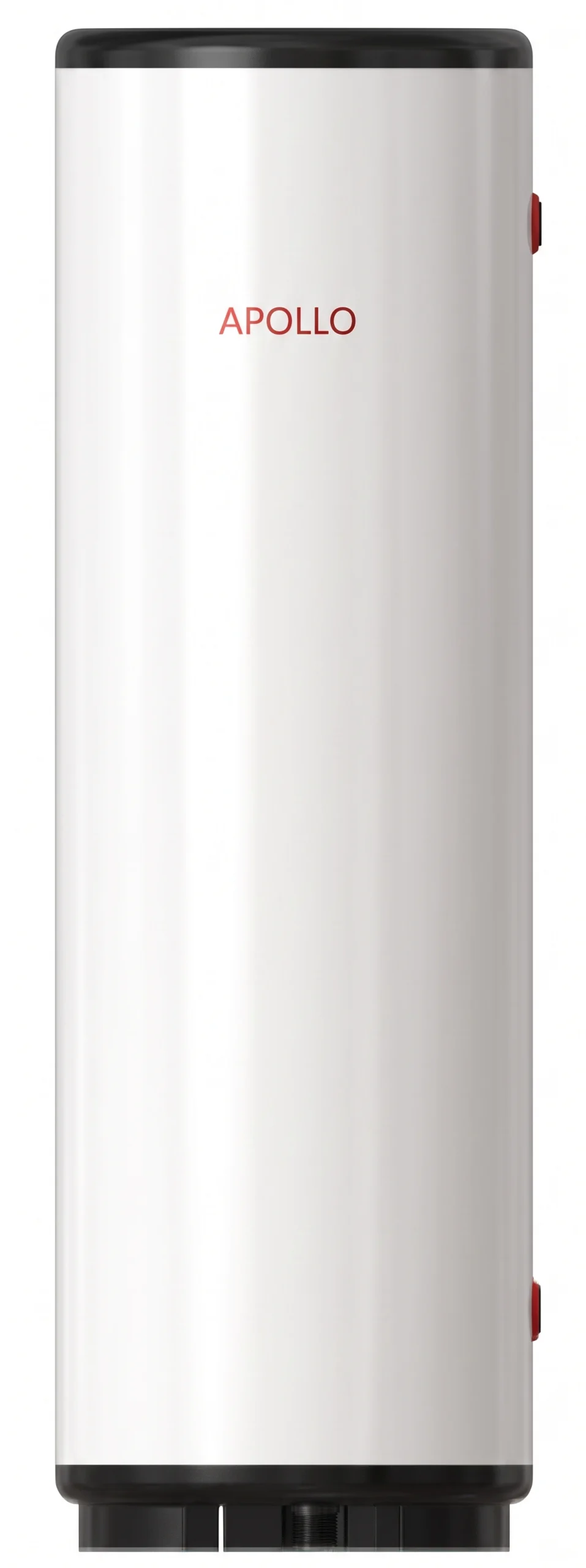

APOLLO DHW80 - 80-Gallon Stainless Steel Indirect Water Heater

The APOLLO DHW80 stores domestic hot water for homes and commercial properties using a compatible boiler or heat pump. Its stainless steel tank and internal coil bring dedicated hot-water storage into your hydronic system.

Key Benefits

  • 80-gallon storage: A dedicated indirect tank for domestic hot water.
  • External heat source: Connect to a compatible boiler or heat pump through the internal heat-transfer coil.
  • 316 stainless steel: A durable inner tank designed for hot-water service.
  • Insulated tank: Two inches of polyurethane foam help reduce heat loss.

Specifications

  • Tank capacity: 80 gal (300 L)
  • Inner tank: 316 stainless steel, 1/16 in
  • Outer jacket: Painted galvanized steel, 1/32 in
  • Heat-transfer coil: 3/4 in x 125 ft with 1 in adapter
  • Connections: 1 in female NPT, with preinstalled plugs
  • Insulation: 2 in polyurethane foam
  • Relief valve: 3/4 in, 125 psi / 210 degrees F, CSA/UL rated
  • Included: Drain valve, magnesium rod and temperature-sensor port
  • Warranty: 10 years

Compare a standalone hybrid electric water heater.

Specifications

Technical specifications
Tank capacity80 gal (300 L)
Inner tankSS316, 1/16 in
Outer jacketPainted galvanized steel, 1/32 in
Coil¾ in × 125 ft with 1 in bushing adapter
Insulation2 in polyurethane foam
Connections1 in NPT female
Relief valve¾ in, CSA/UL rated 125 PSI / 210°F
IncludedDrain valve, magnesium rod, temperature-sensor port
Tank capacity
80 gal (300 L)
Inner tank
SS316, 1/16 in
Outer jacket
Painted galvanized steel, 1/32 in
Coil
¾ in × 125 ft with 1 in bushing adapter
Insulation
2 in polyurethane foam
Connections
1 in NPT female
Relief valve
¾ in, CSA/UL rated 125 PSI / 210°F
Included
Drain valve, magnesium rod, temperature-sensor port
