APOLLO Stainless Expansion Tank

NZG

Product overview

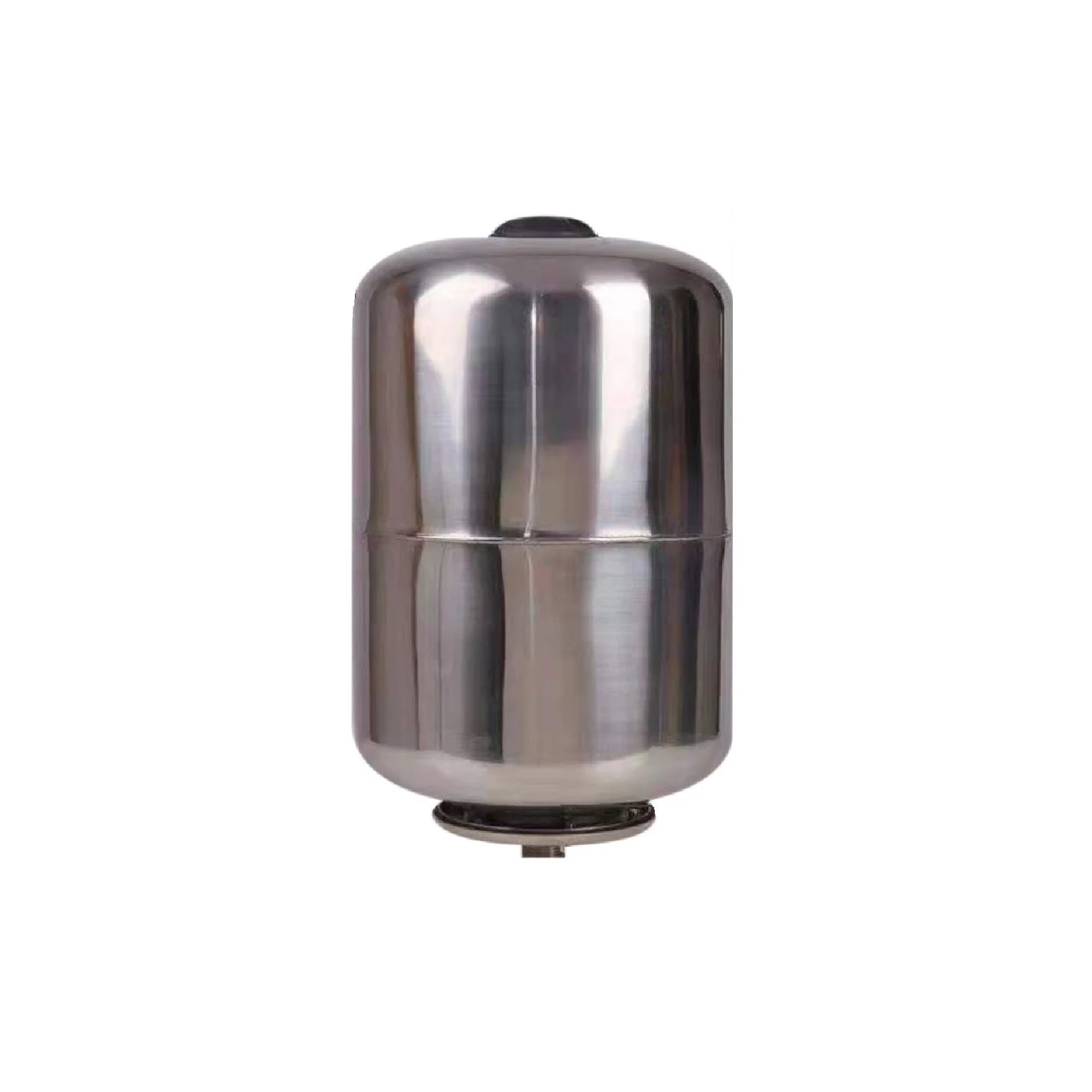

APOLLO Stainless Steel Hydronic Expansion Tank - 6.5 or 9.5 Gal

The APOLLO stainless steel hydronic expansion tank absorbs fluid expansion in closed-loop heating and cooling systems. Choose a 6.5- or 9.5-gallon nominal capacity to suit the system design.

Key Benefits

  • Closed-loop pressure control: Gives expanding system fluid room to help manage pressure changes.
  • Two nominal sizes: Choose the tank size for the system volume and operating conditions.
  • Replaceable EPDM bladder: Service the bladder without replacing the complete tank when appropriate.
  • 316 stainless steel tank: Durable construction for hydronic applications.

Specifications

  • Nominal capacity: 6.5 or 9.5 gal
  • Tank material: 316 stainless steel
  • Bladder: Replaceable EPDM
  • Connection: 3/4 in NPT
  • Listed pressure rating: 150 psi
  • Pre-charge: 15 psi
  • Included: Wall support and two clamps
  • Sizing: Confirm acceptance volume, dimensions and system sizing before installation

Find a compatible replacement bladder.

Models and variants

Available model options
ModelAvailable attributes
NZG-24Tank Volume: 6.5 gal
NZG-36Tank Volume: 9.5 gal
