APOLLO BF175 / BF250 Stainless Buffer Tanks

AP-BF

Product overview

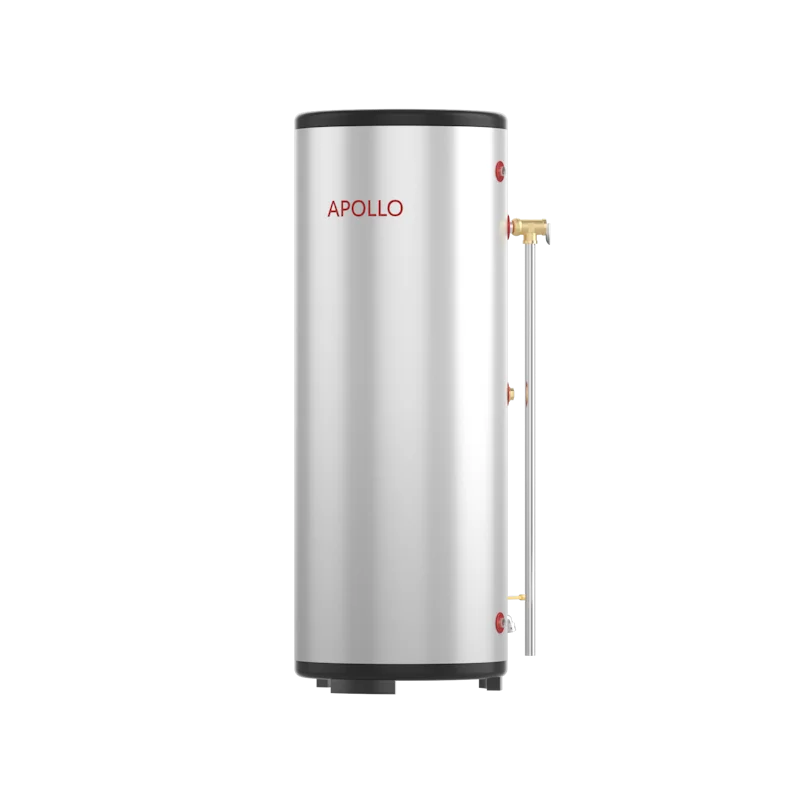

APOLLO BF175 and BF250 - Commercial Stainless Steel Buffer Tanks

The APOLLO BF175 and BF250 add 175 or 250 gallons of buffer volume to larger compatible hydronic heat-pump systems. Select the capacity and coil configuration that fit your mechanical-room design.

Key Benefits

  • Two capacities: Choose 175 or 250 gallons of hydronic buffer storage.
  • No-coil or dual-coil options: Select the internal configuration required by the system design.
  • 316 stainless steel inner tank: Durable construction with an insulated outer jacket.
  • Commercial system flexibility: Plan for the required connections, service access and system volume.

Specifications

  • BF175 dimensions: 79 in high x 30 in diameter; 2 in insulation
  • BF250 dimensions: 85 in high x 34 in diameter; 1.5 in insulation
  • Connections: Female NPT; confirm the selected port layout
  • Maximum working pressure: 200 psi
  • Relief valve: 3/4 in, 125 psi / 210 degrees F, CSA/UL rated
  • Included: Sensor well, drain valve and preinstalled plugs
  • Warranty: 10 years

Models and variants

Available model options
ModelAvailable attributes
AP-BF175-NCModel: BF175 / Coil: No Coil
AP-BF250-NCModel: BF250 / Coil: No Coil
AP-BF175-2CModel: BF175 / Coil: Dual Coil
AP-BF250-2CModel: BF250 / Coil: Dual Coil

Specifications

Technical specifications
Volume175 gal / 250 gal
Inner tankSS316, 1/16 in
Outer jacketPainted galvanized steel, 1/32 in
Insulation2 in (BF175) / 1½ in (BF250)
ConfigurationsWithout coil (0C) or with 2 internal coils (2C)
Relief valve¾ in, CSA/UL rated 125 PSI / 210°F
Volume
175 gal / 250 gal
Inner tank
SS316, 1/16 in
Outer jacket
Painted galvanized steel, 1/32 in
Insulation
2 in (BF175) / 1½ in (BF250)
Configurations
Without coil (0C) or with 2 internal coils (2C)
Relief valve
¾ in, CSA/UL rated 125 PSI / 210°F
