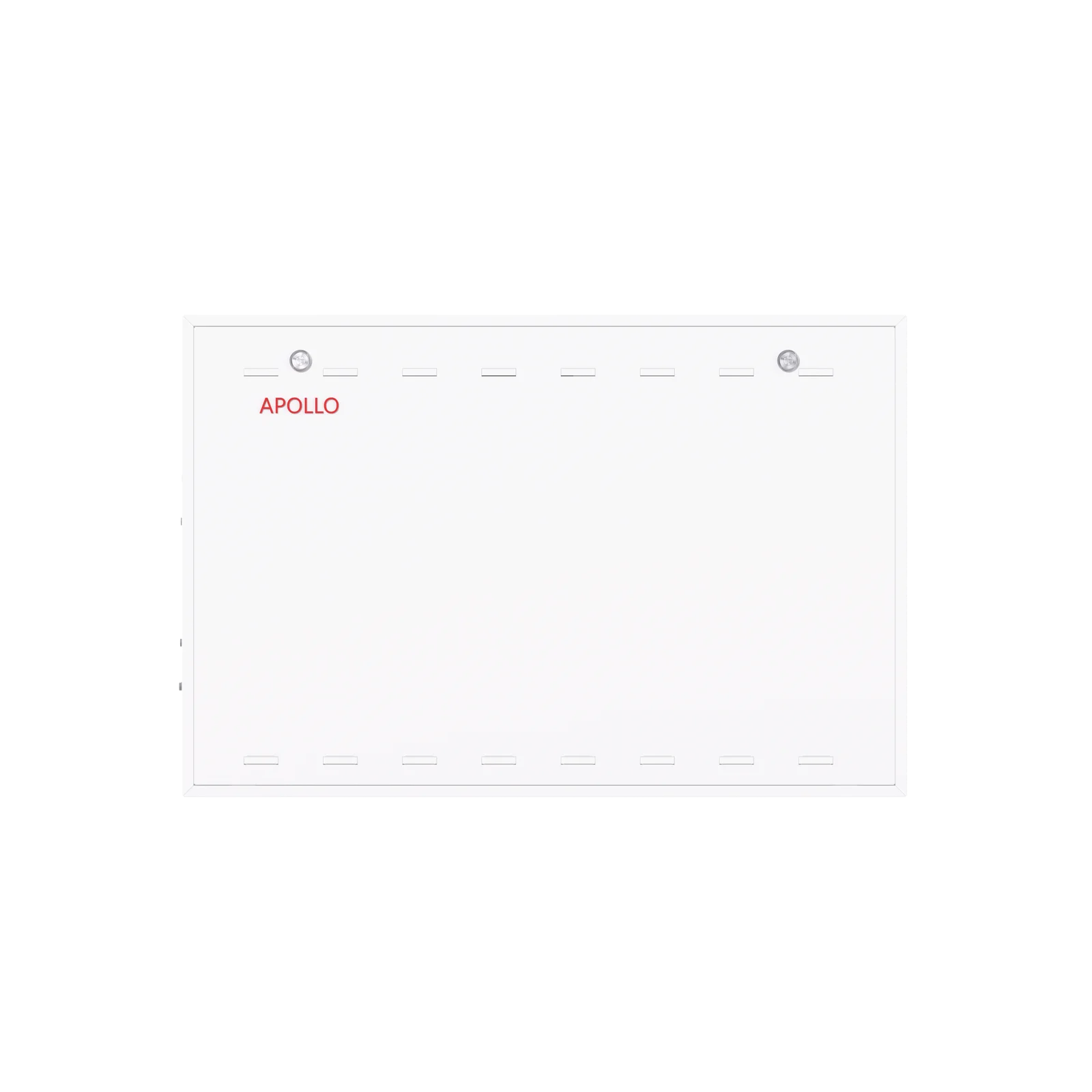

The APOLLO Manifold Station
Instead of building the manifold assembly piece by piece on site, the APOLLO Manifold Station provides a clean, pre-assembled solution that saves time, improves consistency, and gives the installation a professional finish.
It combines manifold distribution, zoning hardware, insulation, and service components into one compact radiant heating and cooling assembly.
The APOLLO Manifold Station is available in three configurations: the standard Manifold Station with 12 loops, the Manifold Station MAX with 12 loops and integrated pump, and the compact Manifold Station Mini with 6 loops.
Key Benefits
- All-in-one manifold package with actuators, zone control, and PEX adapters included
- Clear configuration options with 12-loop standard and MAX models, plus a compact 6-loop Mini version
- 316 stainless steel manifold body for corrosion-resistant performance
- Flow meters and balancing valves support accurate loop-by-loop adjustment
- Insulated assembly helps limit heat loss and condensation
- Isolation and service components simplify commissioning and maintenance
- MAX version adds a high-efficiency pump for expanded system capability
Available Configurations
- Manifold Station: 12-loop manifold station for larger radiant heating and cooling systems
- Manifold Station MAX: 12-loop manifold station with integrated high-efficiency pump
- Manifold Station Mini: 6-loop compact manifold station for smaller radiant zones or limited-space installations
Specifications
- Loop Capacity: 12 loops on Manifold Station and Manifold Station MAX; 6 loops on Manifold Station Mini
- Included Controls: APOLLO actuators and zone valve control included according to configuration
- Connections: Two 1" ball valves and two PEX adapters
- Material: Stainless steel 316
- Maximum Pressure: 150 PSI
- Insulation: Pre-insulated assembly for improved system efficiency
- Pump: Included on Manifold Station MAX only
Models and variants
| Model | Available attributes |
|---|---|
| AP-MANIFOLD-STATION-BOX | Manifold Configuration: Manifold Station 12 Loop |
| AP-MANIFOLD-STATION-MAX-BOX | Manifold Configuration: Manifold Station MAX 12 Loop |
| AP-MANIFOLD-STATION-BOX-MINI | Manifold Configuration: Manifold Station Mini 6 Loop |
Specifications
| Specification | Manifold Station 12 Loop | Manifold Station MAX 12 Loop | Manifold Station Mini 6 Loop |
|---|---|---|---|
| Loops | 12 | 12 | 6 |
| Pump | Not included | Circulator pump | Not included |
| Electrical box | Not included | Terminal box | Not included |
Applies to all models
| Application | Radiant heating and cooling |
|---|---|
| Mounting | Wall-mounted back panel |
| Material | Stainless steel 316 |
| Controller | APOLLO 8-zone controller |
| Transformer | 24 V |
| Actuators | Electric actuators included |
| Flow management | Flow meter and balancing indicator on each loop |
| Service | Isolation valves, drain valves, and thermometers |
| Connections | 2 × 1 in ball valves and 2 PEX adapters |
| Insulation | Pre-insulated |
| Max pressure | 150 PSI |
Manifold Station 12 Loop
- Loops
- 12
- Pump
- Not included
- Electrical box
- Not included
Manifold Station MAX 12 Loop
- Loops
- 12
- Pump
- Circulator pump
- Electrical box
- Terminal box
Manifold Station Mini 6 Loop
- Loops
- 6
- Pump
- Not included
- Electrical box
- Not included
Applies to all models
- Application
- Radiant heating and cooling
- Mounting
- Wall-mounted back panel
- Material
- Stainless steel 316
- Controller
- APOLLO 8-zone controller
- Transformer
- 24 V
- Actuators
- Electric actuators included
- Flow management
- Flow meter and balancing indicator on each loop
- Service
- Isolation valves, drain valves, and thermometers
- Connections
- 2 × 1 in ball valves and 2 PEX adapters
- Insulation
- Pre-insulated
- Max pressure
- 150 PSI
