APOLLO Commercial Custom Manifold

APOLLO-PEX-COMMERCIAL-6-MANIFOLD

Request product information

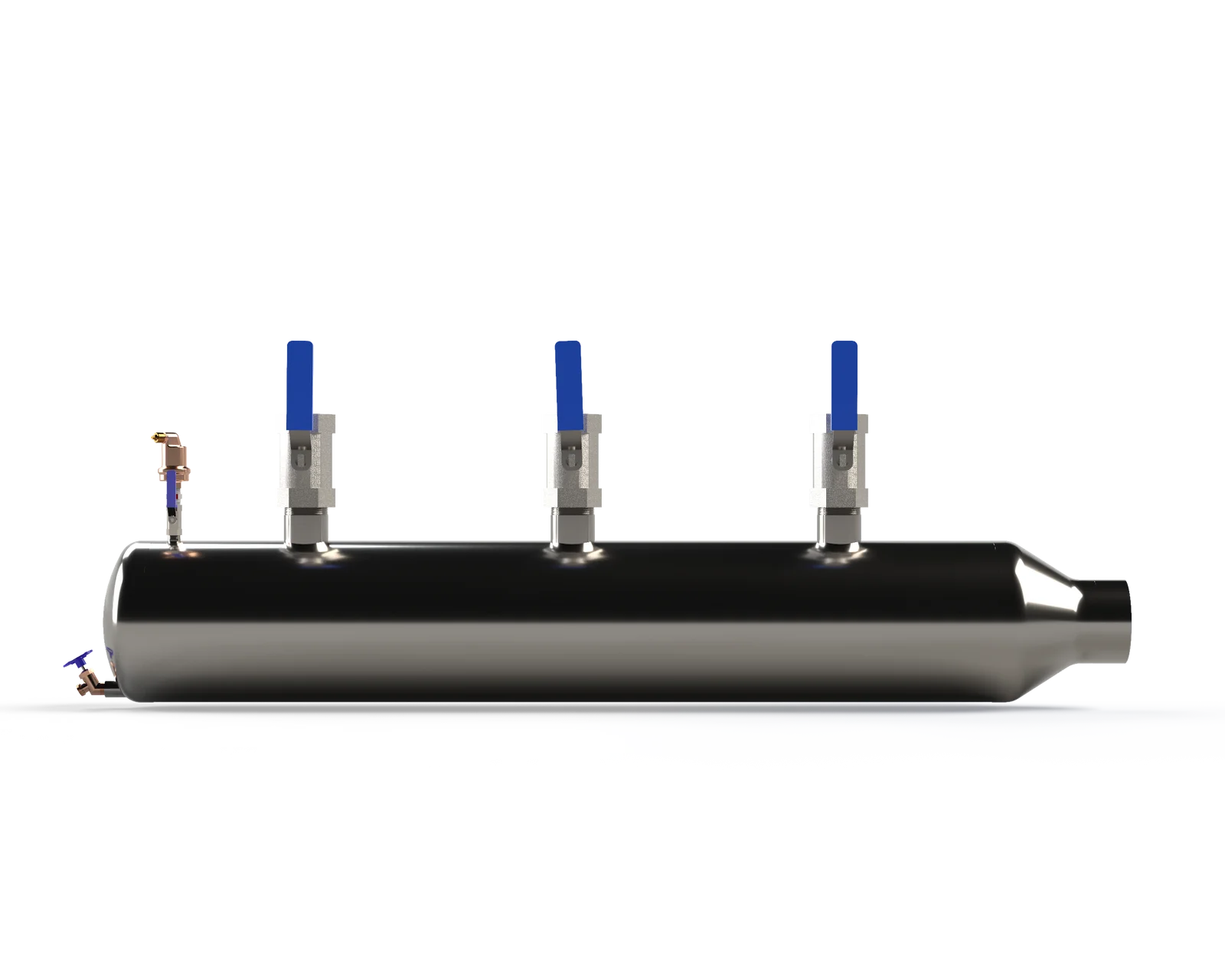

APOLLO commercial custom manifold, 3 loop, front view with ball valvesImage 1 of 8

Product overview

APOLLO Commercial Custom Manifold

Commercial stainless steel manifold for larger radiant heating and cooling systems, with configurable loop counts and port sizes for higher-flow installations.

Key Benefits

  • 304 stainless steel construction for rugged commercial-duty performance
  • Configurable layout across multiple loop counts and port-size combinations
  • Flow meters and balancing valves support accurate circuit adjustment
  • Insulated assembly helps reduce heat loss and condensation
  • Isolation valves and durable air vents support serviceability
  • Compatible with glycol-based radiant systems and APOLLO zoning accessories

Specifications

  • Material: Stainless steel 304
  • Loop Configurations: 3-loop, 4-loop, 5-loop, 6-loop, and 7-loop
  • Loop Port Sizes: 1 1/2", 2", 2 1/2", and 3"
  • Main Port Sizes: 2 1/2", 3", 4", 5", and 6"
  • Included Components: Ball valves, flow meters, balancing valves, insulation, air vents, and 2-1/2" PEX port connectors
  • Maximum Pressure: 100 PSI
