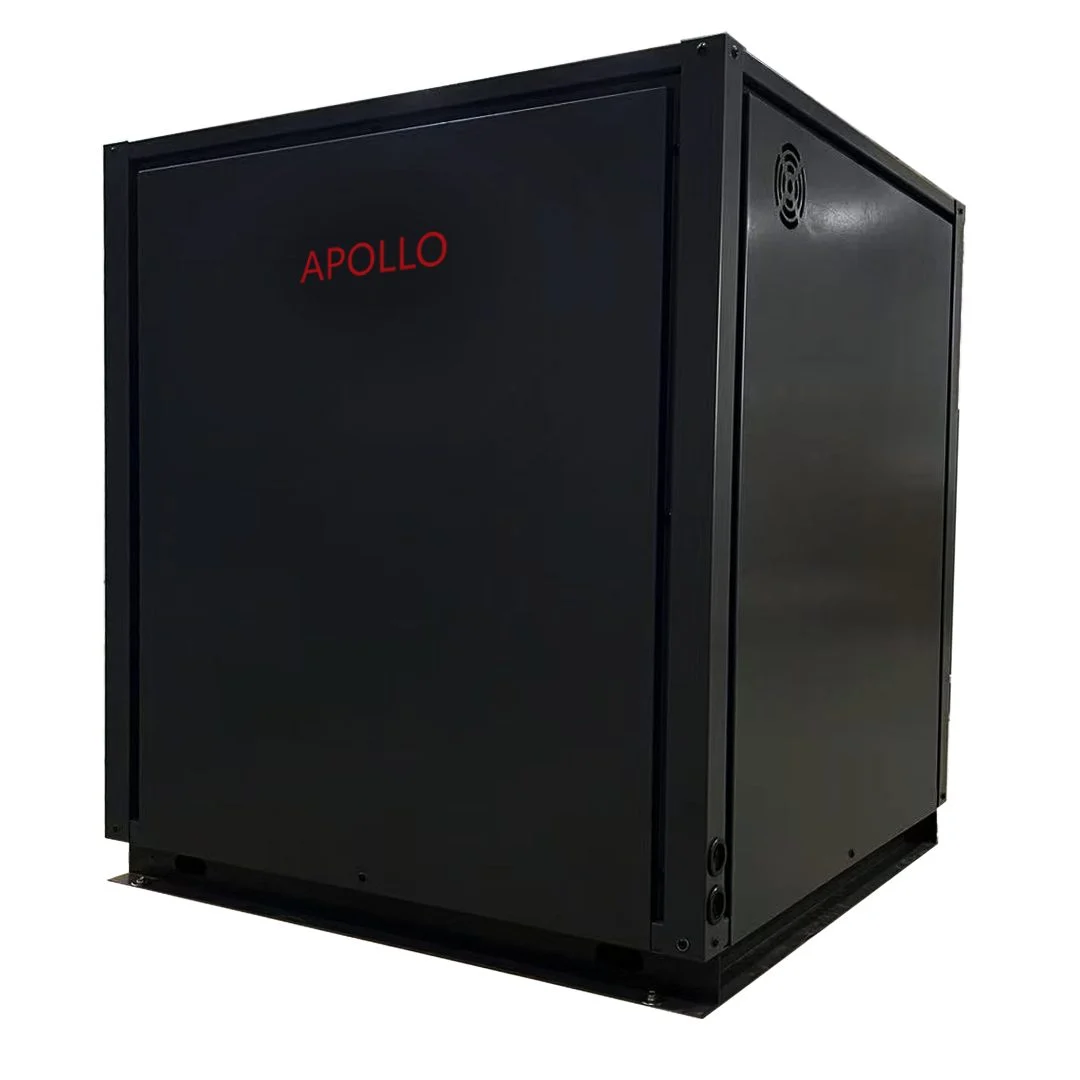

APOLLO Geothermal MAX Water-to-Water Heat Pump — 6 Ton / 72K BTU

GEO-HP-MAX-6TON

Product overview

GEOTHERMAL WATER-TO-WATER HEAT PUMP MAX – 72K BTU / 6 TON

High-performance geothermal heat pump designed as a premium boiler replacement solution, with tested heating water up to 131°F outlet, for larger residential and light commercial hydronic systems.

Key Benefits

  • Heating water up to 131°F outlet on the high-temperature test
  • All-in-one system for heating, cooling, domestic hot water, and pool heating
  • Compatible with radiant floors, fan coil units, air handling units, baseboards, and radiators
  • High efficiency with a heating COP up to 5.9 on a water loop
  • Quiet operation at 52 dB(A)

Specifications

  • Recommended coverage: Up to 4,000 ft²
  • Rated heating: 29.5 kW / 100,675 BTU/h
  • Rated cooling: 25.2 kW / 86,131 BTU/h
  • Heating water: up to 131°F outlet (122°F inlet)
  • Cooling water: 54°F inlet / 45°F outlet
  • Cooling COP: 4.4
  • Compressor: Twin rotary DC inverter
  • Water connections: 1 1/4 in
  • Sound level: 52 dB(A)
  • Controller: Wi-Fi included
  • Application: Residential and light commercial hydronic heating and cooling systems

Designed in the USA

Specifications

Technical specifications
Rated heating capacity29.5 kW / 100,675 BTU/h
Rated cooling capacity25.2 kW / 86,131 BTU/h
Heating COP, water loop3.7–5.9
Heating COP, brine loop2.9–4.9
Cooling COP4.4
Highest tested heating water122°F inlet / 131°F outlet
Cooling water54°F inlet / 45°F outlet
Power supply220 V / 1 / 60 Hz
Water flow14–22 GPM
Water connection1 1/4 in
CompressorTwin rotary DC inverter
Sound level52 dB(A)
ControllerWi-Fi included
Recommended coverageUp to 4,000 ft²
Rated heating capacity
29.5 kW / 100,675 BTU/h
Rated cooling capacity
25.2 kW / 86,131 BTU/h
Heating COP, water loop
3.7–5.9
Heating COP, brine loop
2.9–4.9
Cooling COP
4.4
Highest tested heating water
122°F inlet / 131°F outlet
Cooling water
54°F inlet / 45°F outlet
Power supply
220 V / 1 / 60 Hz
Water flow
14–22 GPM
Water connection
1 1/4 in
Compressor
Twin rotary DC inverter
Sound level
52 dB(A)
Controller
Wi-Fi included
Recommended coverage
Up to 4,000 ft²
