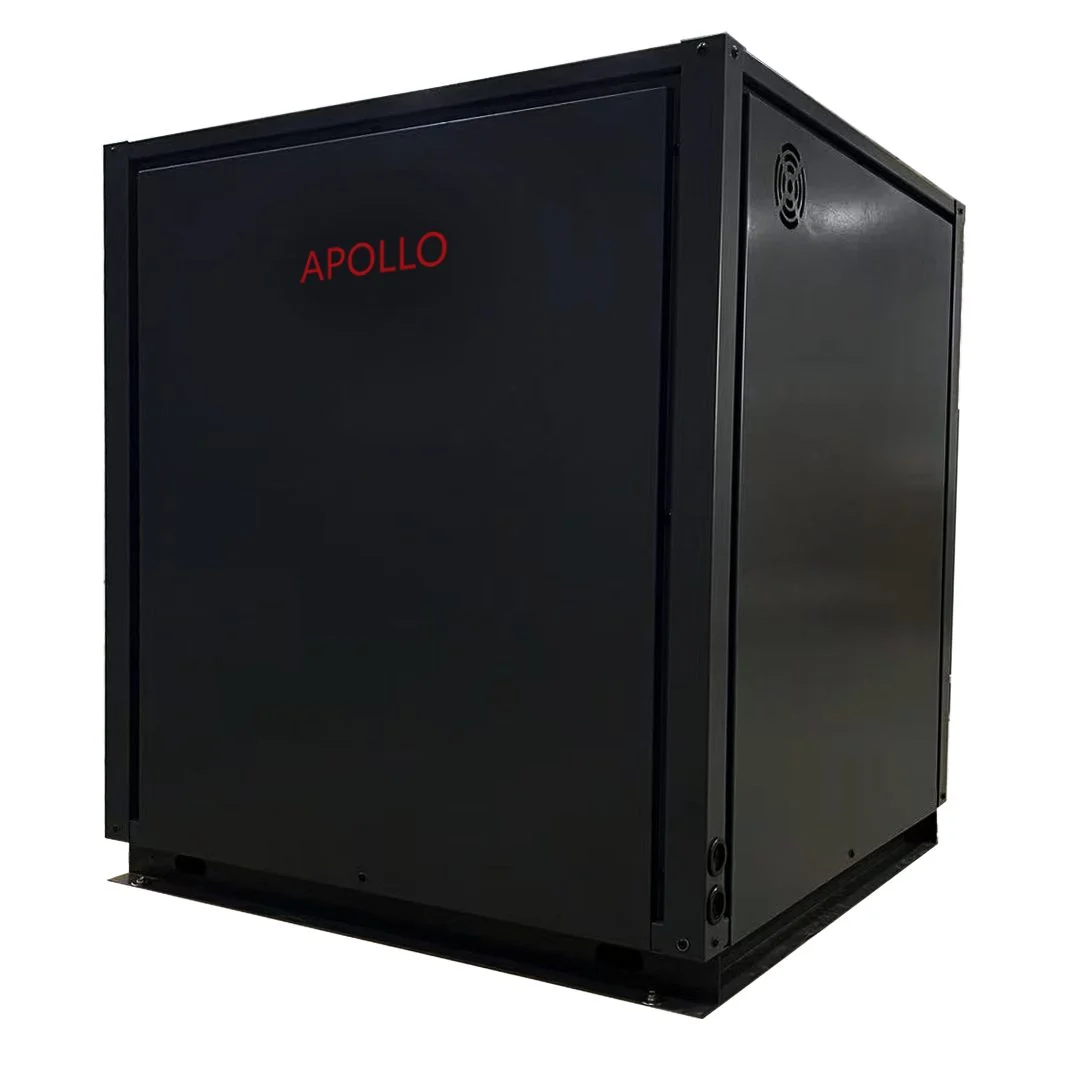

APOLLO Geothermal MAX Water-to-Water Heat Pump — 4 Ton / 48K BTU

GEO-HP-MAX-4TON

Product overview

GEOTHERMAL WATER-TO-WATER HEAT PUMP MAX – 48K BTU / 4 TON

High-performance geothermal heat pump designed as a premium boiler replacement solution, with tested heating water up to 131°F outlet, for efficient heating, cooling, and hot water.

Key Benefits

  • Heating water up to 131°F outlet on the high-temperature test
  • All-in-one system for heating, cooling, domestic hot water, and pool heating
  • Compatible with radiant floors, fan coil units, air handling units, baseboards, and radiators
  • High efficiency with a heating COP up to 6.8 on a water loop
  • Quiet operation at 48 dB(A)

Specifications

  • Recommended coverage: Up to 2,500 ft²
  • Rated heating: 14.7 kW / 50,230 BTU/h
  • Rated cooling: 12.7 kW / 43,330 BTU/h
  • Heating water: up to 131°F outlet (122°F inlet)
  • Cooling water: 54°F inlet / 45°F outlet
  • Cooling COP: 4.4
  • Compressor: Twin rotary DC inverter
  • Water connections: 1 in
  • Sound level: 48 dB(A)
  • Controller: Wi-Fi included
  • Application: Residential hydronic heating and cooling systems

Designed in the USA

Specifications

Technical specifications
Rated heating capacity14.7 kW / 50,230 BTU/h
Rated cooling capacity12.7 kW / 43,330 BTU/h
Heating COP, water loop3.4–6.8
Heating COP, brine loop2.6–5.5
Cooling COP4.4
Highest tested heating water122°F inlet / 131°F outlet
Cooling water54°F inlet / 45°F outlet
Power supply220 V / 1 / 60 Hz
Water flow9–11 GPM
Water connection1 in
CompressorTwin rotary DC inverter
Sound level48 dB(A)
ControllerWi-Fi included
Recommended coverageUp to 2,500 ft²
Rated heating capacity
14.7 kW / 50,230 BTU/h
Rated cooling capacity
12.7 kW / 43,330 BTU/h
Heating COP, water loop
3.4–6.8
Heating COP, brine loop
2.6–5.5
Cooling COP
4.4
Highest tested heating water
122°F inlet / 131°F outlet
Cooling water
54°F inlet / 45°F outlet
Power supply
220 V / 1 / 60 Hz
Water flow
9–11 GPM
Water connection
1 in
Compressor
Twin rotary DC inverter
Sound level
48 dB(A)
Controller
Wi-Fi included
Recommended coverage
Up to 2,500 ft²
