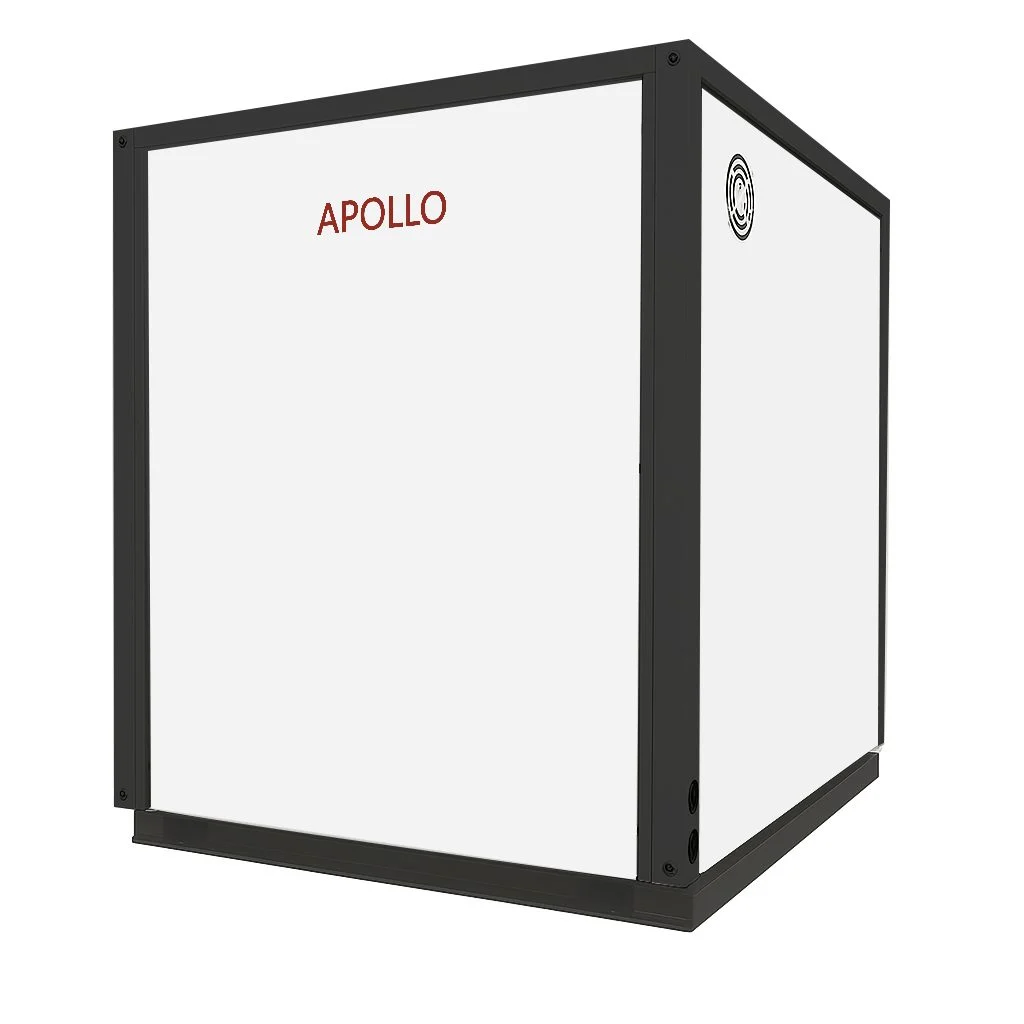

APOLLO Geothermal Water-to-Water Heat Pump — 6 Ton / 72K BTU

AP-GEO-HP-6T

Product overview

GEOTHERMAL WATER-TO-WATER HEAT PUMP – 72K BTU / 6 TON

High-capacity geothermal heat pump designed as a complete boiler replacement solution, delivering efficient heating, cooling, and hot water for larger residential or light commercial applications.

Key Benefits

  • All-in-one system for heating, cooling, domestic hot water, and pool heating
  • Designed for radiant floors, fan coil units, and air handlers
  • High efficiency with a heating COP up to 5.6 on a water loop
  • Reliable operation in extreme cold and hot climates
  • Wi-Fi controller included

Specifications

  • Recommended coverage: 4,000 ft²
  • Rated heating: 28.1 kW / 95,881 BTU/h
  • Rated cooling: 24.0 kW / 82,028 BTU/h
  • Heating water: up to 131°F outlet (122°F inlet)
  • Cooling water: 54°F inlet / 45°F outlet
  • Cooling COP: 4.2
  • Compressor: Twin rotary DC inverter
  • Sound level: 52 dB(A)
  • Water connections: 1 1/4 in
  • Refrigerant: R-32
  • Application: Hydronic heating and cooling systems

Designed in the USA

Specifications

Technical specifications
Model codeAP-GEO-6T
Rated heating capacity28.1 kW / 95,881 BTU/h
Rated cooling capacity24.0 kW / 82,028 BTU/h
Heating COP, water loop3.2–5.6
Heating COP, brine loop2.6–4.7
Cooling COP4.2
Power supply220 V / 1 / 60 Hz
Water flow14–22 GPM
Water connection1 1/4 in
RefrigerantR-32
CompressorTwin rotary DC inverter
Sound level52 dB(A)
Cabinet dimensions29½ × 29½ × 32⅔ in
Model code
AP-GEO-6T
Rated heating capacity
28.1 kW / 95,881 BTU/h
Rated cooling capacity
24.0 kW / 82,028 BTU/h
Heating COP, water loop
3.2–5.6
Heating COP, brine loop
2.6–4.7
Cooling COP
4.2
Power supply
220 V / 1 / 60 Hz
Water flow
14–22 GPM
Water connection
1 1/4 in
Refrigerant
R-32
Compressor
Twin rotary DC inverter
Sound level
52 dB(A)
Cabinet dimensions
29½ × 29½ × 32⅔ in
