APOLLO

Heat Pumps / Geothermal

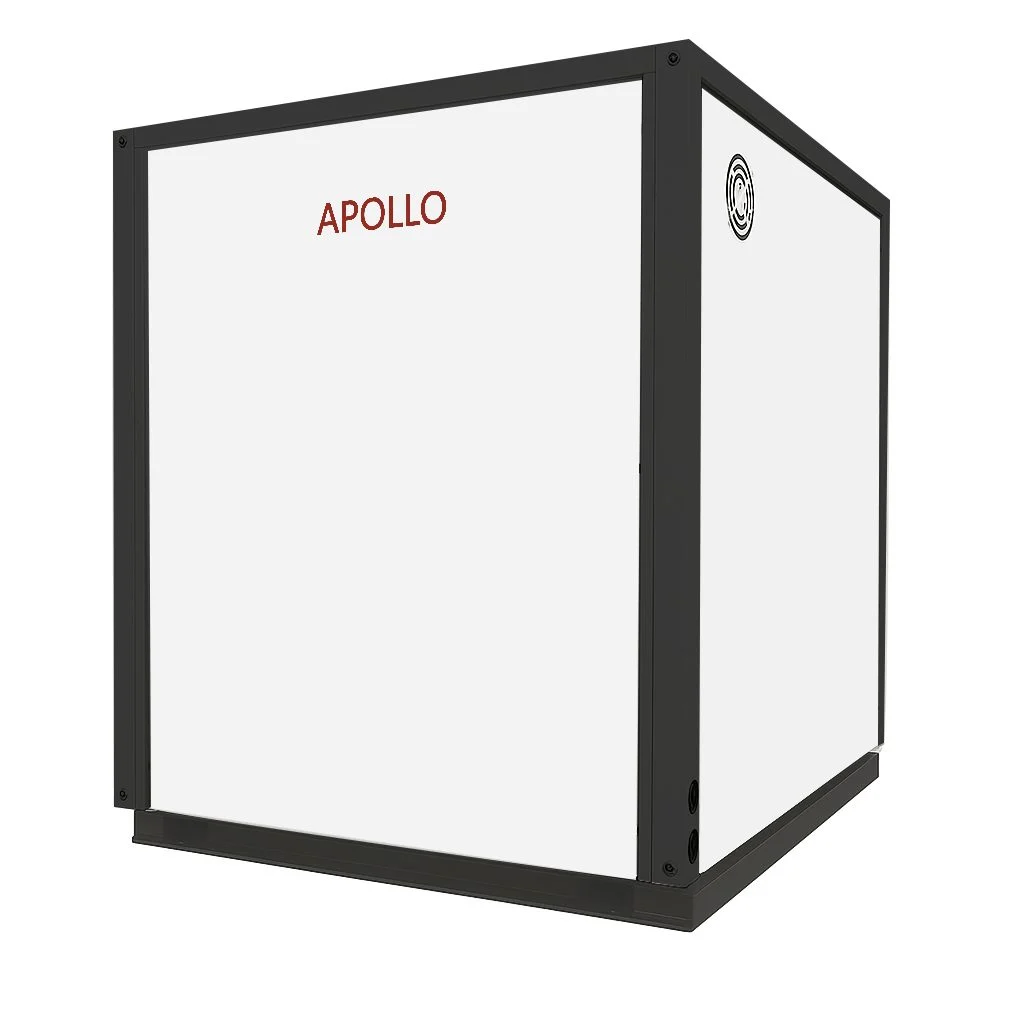

APOLLO Geothermal Water-to-Water Heat Pump — 4 Ton / 48K BTU

AP-GEO-HP-4T

Product overview

GEOTHERMAL WATER-TO-WATER HEAT PUMP – 48K BTU / 4 TON

High-efficiency geothermal heat pump designed as a complete boiler replacement solution, delivering reliable heating, cooling, and hot water with exceptional performance in all climates.

Key Benefits

  • All-in-one system for heating, cooling, domestic hot water, and pool heating
  • Designed for radiant floors, fan coil units, and air handling units
  • High efficiency with a heating COP up to 6.7 on a water loop
  • Stable operation in extreme cold and hot climates
  • Quiet performance at 48 dB(A)

Specifications

  • Recommended coverage: Up to 2,500 ft²
  • Rated heating: 14.0 kW / 47,838 BTU/h
  • Rated cooling: 12.1 kW / 41,270 BTU/h
  • Heating water: up to 131°F outlet (122°F inlet)
  • Cooling water: 54°F inlet / 45°F outlet
  • Cooling COP: 4.2
  • Compressor: Twin rotary DC inverter
  • Water connections: 1 in
  • Refrigerant: R-32
  • Sound level: 48 dB(A)
  • Controller: Wi-Fi included
  • Application: Residential hydronic heating and cooling systems

Designed in the USA

Specifications

Technical specifications
Model codeAP-GEO-4T
Rated heating capacity14.0 kW / 47,838 BTU/h
Rated cooling capacity12.1 kW / 41,270 BTU/h
Heating COP, water loop3.3–6.7
Heating COP, brine loop2.4–5.2
Cooling COP4.2
Power supply220 V / 1 / 60 Hz
Water flow9–11 GPM
Water connection1 in
RefrigerantR-32
CompressorTwin rotary DC inverter
Sound level48 dB(A)
Cabinet dimensions29½ × 29½ × 25½ in
Model code
AP-GEO-4T
Rated heating capacity
14.0 kW / 47,838 BTU/h
Rated cooling capacity
12.1 kW / 41,270 BTU/h
Heating COP, water loop
3.3–6.7
Heating COP, brine loop
2.4–5.2
Cooling COP
4.2
Power supply
220 V / 1 / 60 Hz
Water flow
9–11 GPM
Water connection
1 in
Refrigerant
R-32
Compressor
Twin rotary DC inverter
Sound level
48 dB(A)
Cabinet dimensions
29½ × 29½ × 25½ in
