Heat Pumps / Air-to-Water

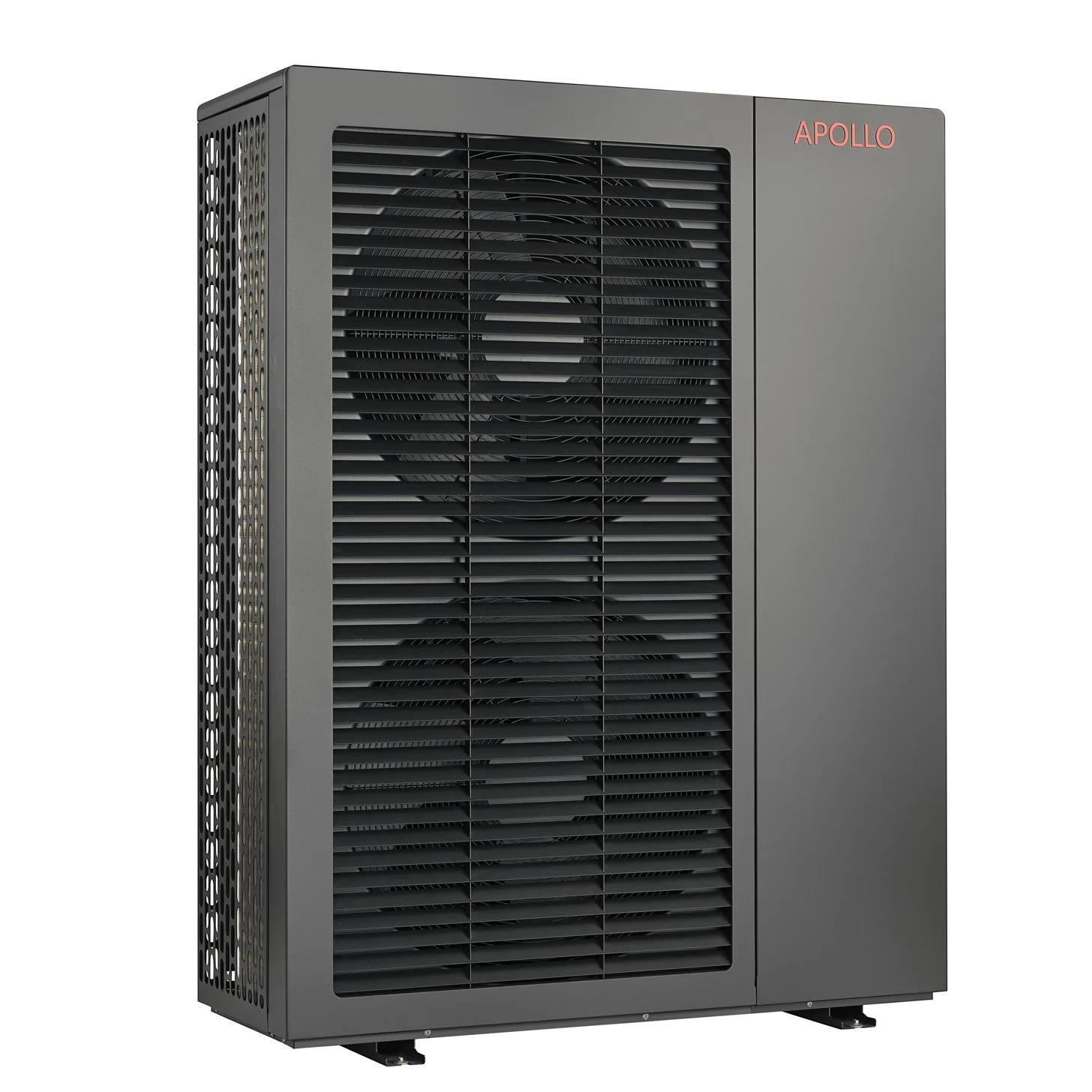

APOLLO MAX Air-to-Water Heat Pump — 5 Ton / 60K BTU
AP-MAX-HP-5TON
Homeowners can buy directly at mbtek.com. Installers, contractors and other trade customers: use the contact form, email or phone. info@apolloheatpumps.com · 1-888-301-0737
Image 1 of 7Product overview
Simply the best air to water heat pump on the market.
Designed in the USA.
APOLLO Heat Pump MAX Heat – 60k BTU / 5 Ton (Air-to-Water EVI Inverter)
High-performance air-to-water heat pump designed for larger homes and demanding climates, delivering high-temperature output, all-in-one functionality, and ultra-efficient operation in a powerful and quiet system.
Key Benefits
- High temperature output up to 170°F (77°C) even in extreme cold
- Operates in extreme temperatures (-22°F to 113°F)
- All-in-one solution for heating, cooling, domestic hot water, and pool heating
- EVI full inverter technology for maximum efficiency and faster heating
- Quiet operation for enhanced indoor comfort
- Built with premium components (Panasonic compressor, Siemens motor)
Specifications
- Heating Capacity: 60,000 BTU (5 Ton / 17.6 kW)
- Recommended Area: Up to 4,000 ft²
- Applications: Radiant floor, FCU, AHU, baseboard, radiators, DHW, pool heating
- Technology: Air-to-water EVI DC inverter
- Max Water Temperature: Up to 170°F (77°C)
- Operating Range: -22°F to 113°F
- Refrigerant: Low GWP refrigerant
- Dimensions: 50.5" L × 18" W × 53.5" H
- Weight: 330 lb
- Control: Wi-Fi smart controller
a.btn-variant, p.btn-variant {
text-decoration: none;
display: inline-block;
width: 75px;
height: 30px;
border: none !important;
text-align: center;
margin: 10px 4px 10px 0;
font-weight: 600;
font-style: normal;
letter-spacing: 0.1em;
text-transform: uppercase;
line-height: 1;
padding: 10px;
font-size: 0.69471em;
background-color: #f5f5f5;
border: 1px solid #f5f5f5;
color: #222;
border-bottom: none;
border-radius: 6px;
}
p.btn-variant.active {
background-color: #ff6700;
font-weight: 700;
cursor: pointer;
color: white;
}
div.container-btns-variants-hp {
margin-top: -14px;
margin-bottom: 22px;
}
Specifications
| Heating range | −22°F to 113°F |
|---|---|
| Cooling range | 60°F to 113°F |
| Max water outlet | 170°F |
| Power supply | 220–240 V / 1 / 60 Hz |
| Max input | 25.6 KBTU, 35 A |
| Water flow | 19.20 GPM |
| Pressure drop | 8.70 PSI |
| Water connection | 1 1/4 in |
| Noise | 48 dB(A) |
| Enclosure | IPX4 |
| Compressor, fan, controller | DC inverter |
| Size (L × W × H) | 46.5 × 20.5 × 62.6 in |
| Weight | 330 lb |
| Heating, 41°F air, water 95°F to 131°F | 63.1 KBTU, input 13.2 KBTU, COP 4.8 |
| Heating, 10°F air, water 97°F to 106°F | 51.0 KBTU, input 14.3 KBTU, COP 3.6 |
| Cooling, 95°F air, water 54°F to 44°F | 15.3–60.3 KBTU, input 5.3 KBTU |
- Heating range
- −22°F to 113°F
- Cooling range
- 60°F to 113°F
- Max water outlet
- 170°F
- Power supply
- 220–240 V / 1 / 60 Hz
- Max input
- 25.6 KBTU, 35 A
- Water flow
- 19.20 GPM
- Pressure drop
- 8.70 PSI
- Water connection
- 1 1/4 in
- Noise
- 48 dB(A)
- Enclosure
- IPX4
- Compressor, fan, controller
- DC inverter
- Size (L × W × H)
- 46.5 × 20.5 × 62.6 in
- Weight
- 330 lb
- Heating, 41°F air, water 95°F to 131°F
- 63.1 KBTU, input 13.2 KBTU, COP 4.8
- Heating, 10°F air, water 97°F to 106°F
- 51.0 KBTU, input 14.3 KBTU, COP 3.6
- Cooling, 95°F air, water 54°F to 44°F
- 15.3–60.3 KBTU, input 5.3 KBTU
