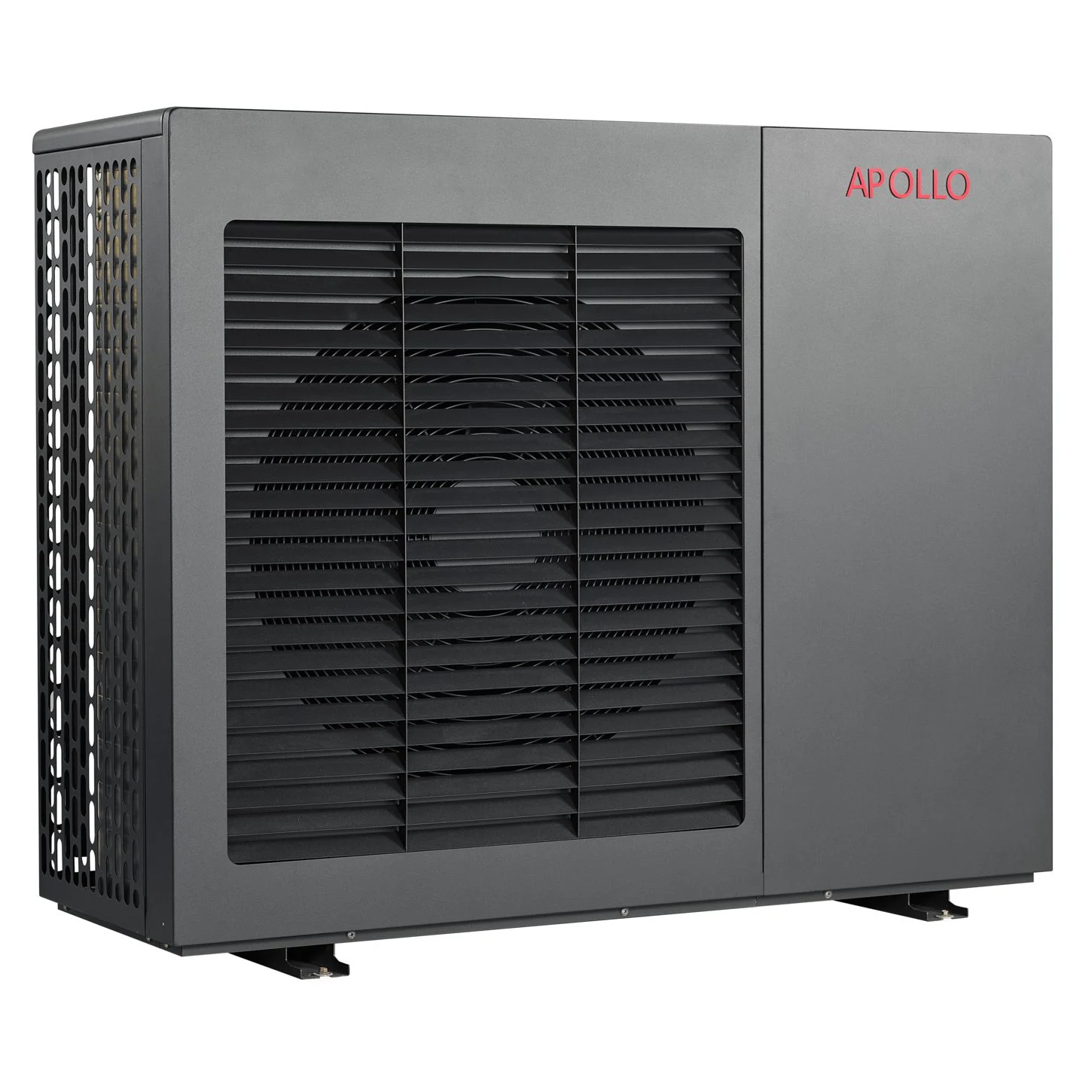

APOLLO MAX Air-to-Water Heat Pump — 4 Ton / 48K BTU

AP-MAX-HP-4TON

Product overview

 Simply the best air to water heat pump on the market.
Designed in the USA.



APOLLO Heat Pump MAX Heat – 48k BTU / 4 Ton (Air-to-Water EVI Inverter)

High-performance air-to-water heat pump designed for residential applications, delivering high-temperature output, all-in-one functionality, and ultra-efficient operation in a compact and quiet system.

Key Benefits

  • High temperature output up to 170°F (77°C) even in extreme cold climates
  • Operates reliably in extreme temperatures (-22°F to 113°F)
  • All-in-one solution for heating, cooling, domestic hot water, and pool heating
  • EVI full inverter technology for maximum efficiency and faster heating
  • Quiet operation for enhanced indoor comfort
  • Built with premium components including Panasonic inverter compressor

Specifications

  • Heating Capacity: 48,000 BTU (4 Ton / 14.5 kW)
  • Recommended Area: Up to 3,000 ft²
  • Applications: Radiant floor, FCU, AHU, baseboard, radiators, DHW, pool heating
  • Technology: Air-to-water EVI DC inverter
  • Max Water Temperature: Up to 170°F (77°C)
  • Operating Range: -22°F to 113°F
  • Refrigerant: Green refrigerant
  • Dimensions: 50.5" L × 18" W × 36.75" H
  • Weight: 245 lb
  • Control: Wi-Fi smart controller

Specifications

Technical specifications
Heating range−22°F to 113°F
Cooling range60°F to 113°F
Max water outlet170°F
Power supply220–240 V / 1 / 60 Hz
Max input18.7 KBTU, 24.5 A
Water flow13.00 GPM
Pressure drop3.63 PSI
Water connection1 in
Noise44 dB(A)
EnclosureIPX4
Compressor, fan, controllerDC inverter
Size (L × W × H)50.5 × 20.3 × 43.9 in
Weight245 lb
Heating, 41°F air, water 95°F to 131°F41.6 KBTU, input 8.8 KBTU, COP 4.8
Heating, 10°F air, water 97°F to 106°F33.6 KBTU, input 9.5 KBTU, COP 3.5
Cooling, 95°F air, water 54°F to 44°F12.4–4.8 KBTU, input 3.9 KBTU
Heating range
−22°F to 113°F
Cooling range
60°F to 113°F
Max water outlet
170°F
Power supply
220–240 V / 1 / 60 Hz
Max input
18.7 KBTU, 24.5 A
Water flow
13.00 GPM
Pressure drop
3.63 PSI
Water connection
1 in
Noise
44 dB(A)
Enclosure
IPX4
Compressor, fan, controller
DC inverter
Size (L × W × H)
50.5 × 20.3 × 43.9 in
Weight
245 lb
Heating, 41°F air, water 95°F to 131°F
41.6 KBTU, input 8.8 KBTU, COP 4.8
Heating, 10°F air, water 97°F to 106°F
33.6 KBTU, input 9.5 KBTU, COP 3.5
Cooling, 95°F air, water 54°F to 44°F
12.4–4.8 KBTU, input 3.9 KBTU
