APOLLO

Heat Pumps / Air-to-Water

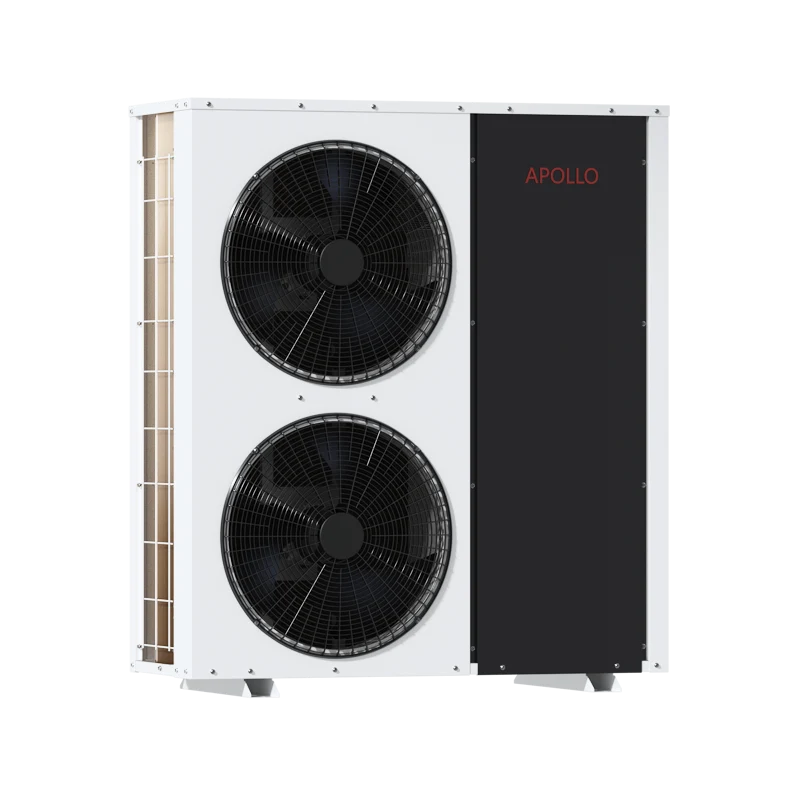

APOLLO Air-to-Water Heat Pump — 6 Ton / 72K BTU

AP-EVI-DC-6T

Product overview

APOLLO Central Heat Pump – 72k BTU / 6 Ton (Air-to-Water EVI Inverter)

High-performance air-to-water heat pump designed for large homes and light commercial applications, delivering high capacity, all-in-one functionality, and maximum efficiency in a durable and ultra-quiet system.

Key Benefits

  • All-in-one solution for heating, cooling, domestic hot water, and pool heating
  • Up to COP 4.6 at the 41°F heating test condition for optimal energy savings
  • Operates in cold-climate EVI inverter performance (see condition-specific capacity tables)
  • EVI full inverter technology for stable performance and reduced energy consumption
  • Quiet operation for enhanced indoor comfort
  • Built with premium components (Panasonic compressor, Siemens motor)

Specifications

  • Heating Capacity: 72,000 BTU (6 Ton)
  • Recommended Area: 4,000 to 6,000 ft²
  • Applications: Radiant floor, fan coil (FCU), air handler (AHU), hot water (DHW), pool heating
  • Technology: Air-to-water EVI DC inverter
  • Efficiency: COP 4.6 at 41°F test condition
  • Operating Range: see condition-specific capacity tables
  • Refrigerant: R-32 (low GWP)
  • Control: Wi-Fi smart controller

Specifications

Technical specifications
Rated heating83.5 KBTU
Rated cooling68.9 KBTU
Power supply220–240 V / 1 / 60 Hz
MCA58.72 A
MOP100.78 A
Water flow19.2 GPM
Water connection1 1/4 in
RefrigerantR32 / 134.6 oz
Noise58 dB(A)
Size (L × W × H)47.6 × 20.9 × 57.3 in
Weight403.5 lb
Heating, 41°F air, water 95°F to 131°F71.5 KBTU, input 15.7 KBTU, 20.8 A, COP 4.6
Heating, 10°F air, water 97°F to 106°F39.2 KBTU, input 18.6 KBTU, 24.8 A, COP 2.11
Cooling, 95°F air, water 54°F to 44°F51.2 KBTU, input 20.4 KBTU, 27.2 A
Rated heating
83.5 KBTU
Rated cooling
68.9 KBTU
Power supply
220–240 V / 1 / 60 Hz
MCA
58.72 A
MOP
100.78 A
Water flow
19.2 GPM
Water connection
1 1/4 in
Refrigerant
R32 / 134.6 oz
Noise
58 dB(A)
Size (L × W × H)
47.6 × 20.9 × 57.3 in
Weight
403.5 lb
Heating, 41°F air, water 95°F to 131°F
71.5 KBTU, input 15.7 KBTU, 20.8 A, COP 4.6
Heating, 10°F air, water 97°F to 106°F
39.2 KBTU, input 18.6 KBTU, 24.8 A, COP 2.11
Cooling, 95°F air, water 54°F to 44°F
51.2 KBTU, input 20.4 KBTU, 27.2 A
