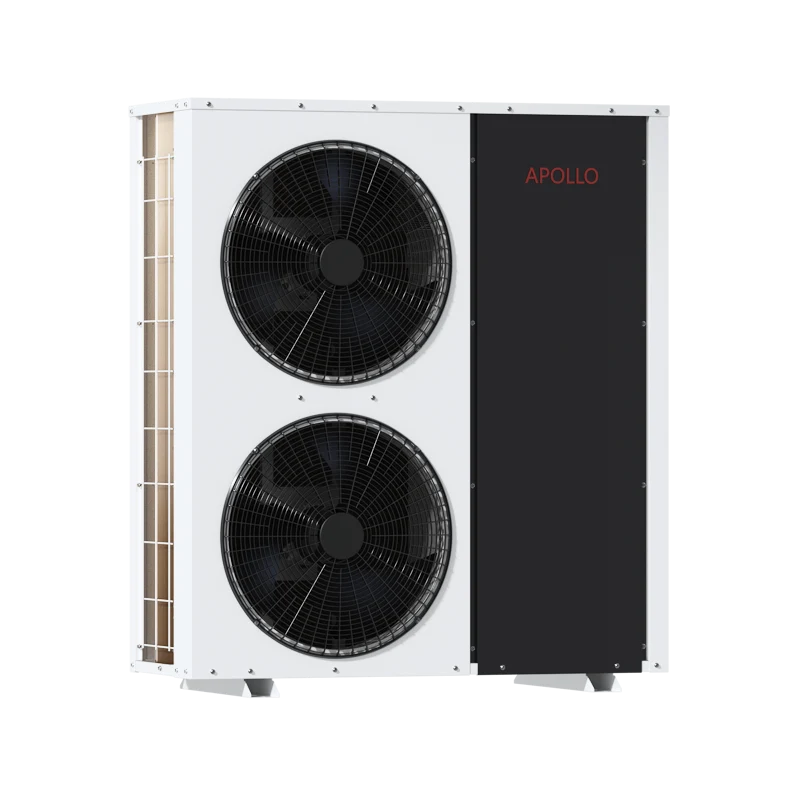

APOLLO Air-to-Water Heat Pump — 5 Ton / 60K BTU

AP-EVI-DC-5T

Product overview

APOLLO Central Heat Pump – 60k BTU / 5 Ton (Air-to-Water EVI Inverter)

High-performance air-to-water heat pump designed for medium to large homes, combining heating, cooling, hot water, and high efficiency in a reliable and ultra-quiet all-in-one system.

Key Benefits

  • All-in-one solution for heating, cooling, domestic hot water, and pool heating
  • Up to COP 4.6 at the 41°F heating test condition for strong energy savings
  • Operates in cold-climate EVI inverter performance (see condition-specific capacity tables)
  • EVI full inverter technology for faster heating and reduced energy consumption
  • Ultra-quiet operation with brushless fan motor and DC pump
  • Built with premium components (Panasonic compressor, Siemens motor)

Specifications

  • Heating Capacity: 60,000 BTU (5 Ton)
  • Recommended Area: 2,500 to 4,000 ft²
  • Applications: Radiant floor, fan coil (FCU), air handler (AHU), hot water (DHW), pool heating
  • Technology: Air-to-water EVI DC inverter
  • Efficiency: COP 4.6 at 41°F test condition
  • Operating Range: see condition-specific capacity tables
  • Refrigerant: R-32 (low GWP)
  • Control: Wi-Fi smart controller

Specifications

Technical specifications
Rated heating58 KBTU
Rated cooling51.5 KBTU
Power supply220–240 V / 1 / 60 Hz
MCA48.16 A
MOP65.84 A
Water flow13 GPM
Water connection1 in
RefrigerantR32 / 81.2 oz
Noise55 dB(A)
Size (L × W × H)45.3 × 20 × 53.8 in
Weight341.8 lb
Heating, 41°F air, water 95°F to 131°F60 KBTU, input 13 KBTU, 17.4 A, COP 4.6
Heating, 10°F air, water 97°F to 106°F32.4 KBTU, input 15.2 KBTU, 20.3 A, COP 2.13
Cooling, 95°F air, water 54°F to 44°F42.7 KBTU, input 17 KBTU, 22.6 A
Rated heating
58 KBTU
Rated cooling
51.5 KBTU
Power supply
220–240 V / 1 / 60 Hz
MCA
48.16 A
MOP
65.84 A
Water flow
13 GPM
Water connection
1 in
Refrigerant
R32 / 81.2 oz
Noise
55 dB(A)
Size (L × W × H)
45.3 × 20 × 53.8 in
Weight
341.8 lb
Heating, 41°F air, water 95°F to 131°F
60 KBTU, input 13 KBTU, 17.4 A, COP 4.6
Heating, 10°F air, water 97°F to 106°F
32.4 KBTU, input 15.2 KBTU, 20.3 A, COP 2.13
Cooling, 95°F air, water 54°F to 44°F
42.7 KBTU, input 17 KBTU, 22.6 A
