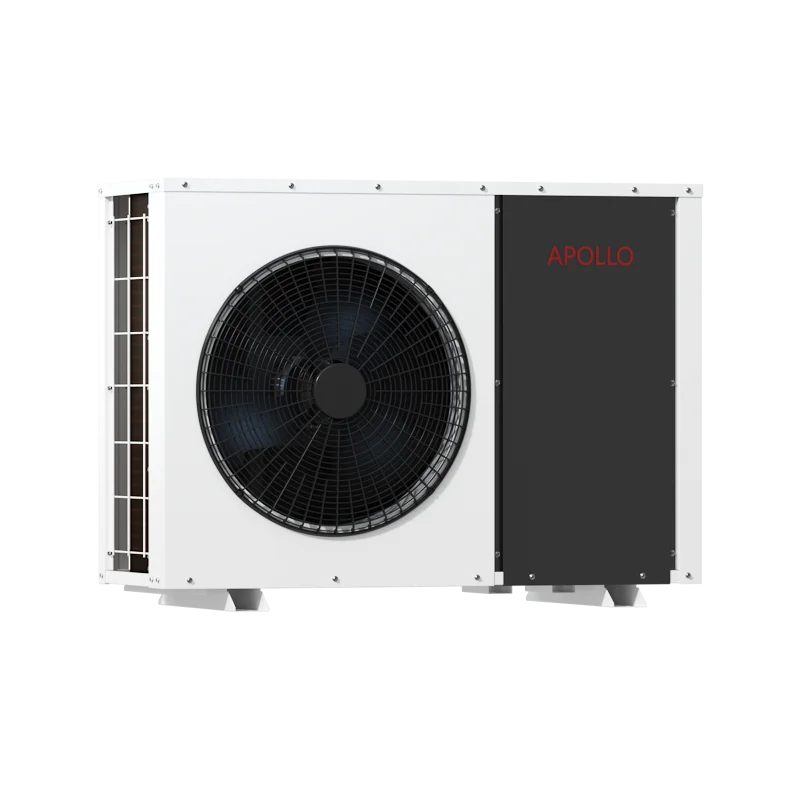

APOLLO Air-to-Water Heat Pump — 3.5 Ton / 42K BTU

AP-EVI-DC-3.5T

Product overview

APOLLO Central Heat Pump – 42k BTU / 3.5 Ton (Air-to-Water EVI Inverter)

High-performance air-to-water heat pump designed as a complete boiler replacement solution, combining heating, cooling, hot water, and high energy efficiency in one compact and ultra-quiet system.

Key Benefits

  • All-in-one solution for heating, cooling, domestic hot water, and pool heating
  • Up to COP 4.6 at the 41°F heating test condition for maximum energy savings
  • Operates in cold-climate EVI inverter performance (see condition-specific capacity tables)
  • EVI full inverter technology for stable performance and lower consumption
  • Virtually silent operation (up to 12dB quieter than standard heat pumps)
  • Built with premium components (Panasonic compressor, Siemens motor)

Specifications

  • Heating Capacity: 42,000 BTU (3.5 Ton)
  • Recommended Area: 1,000 to 2,500 ft²
  • Applications: Radiant floor, fan coil (FCU), air handler (AHU), hot water (DHW), pool heating
  • Technology: Air-to-water EVI DC inverter
  • Efficiency: COP 4.6 at 41°F test condition
  • Operating Range: see condition-specific capacity tables
  • Refrigerant: R-32 (low GWP)
  • Control: Wi-Fi smart controller

Specifications

Technical specifications
Rated heating35.8 KBTU
Rated cooling27.4 KBTU
Power supply220–240 V / 1 / 60 Hz
MCA29.41 A
MOP39.56 A
Water flow8.2 GPM
Water connection1 in
RefrigerantR32 / 49.3 oz
Noise52 dB(A)
Size (L × W × H)43.4 × 18.5 × 33.1 in
Weight275.6 lb
Heating, 41°F air, water 95°F to 131°F42 KBTU, input 9.2 KBTU, 12.2 A, COP 4.6
Heating, 10°F air, water 97°F to 106°F22.2 KBTU, input 10.5 KBTU, 14 A, COP 2.11
Cooling, 95°F air, water 54°F to 44°F27.3 KBTU, input 6.8 KBTU, 13.6 A
Rated heating
35.8 KBTU
Rated cooling
27.4 KBTU
Power supply
220–240 V / 1 / 60 Hz
MCA
29.41 A
MOP
39.56 A
Water flow
8.2 GPM
Water connection
1 in
Refrigerant
R32 / 49.3 oz
Noise
52 dB(A)
Size (L × W × H)
43.4 × 18.5 × 33.1 in
Weight
275.6 lb
Heating, 41°F air, water 95°F to 131°F
42 KBTU, input 9.2 KBTU, 12.2 A, COP 4.6
Heating, 10°F air, water 97°F to 106°F
22.2 KBTU, input 10.5 KBTU, 14 A, COP 2.11
Cooling, 95°F air, water 54°F to 44°F
27.3 KBTU, input 6.8 KBTU, 13.6 A
