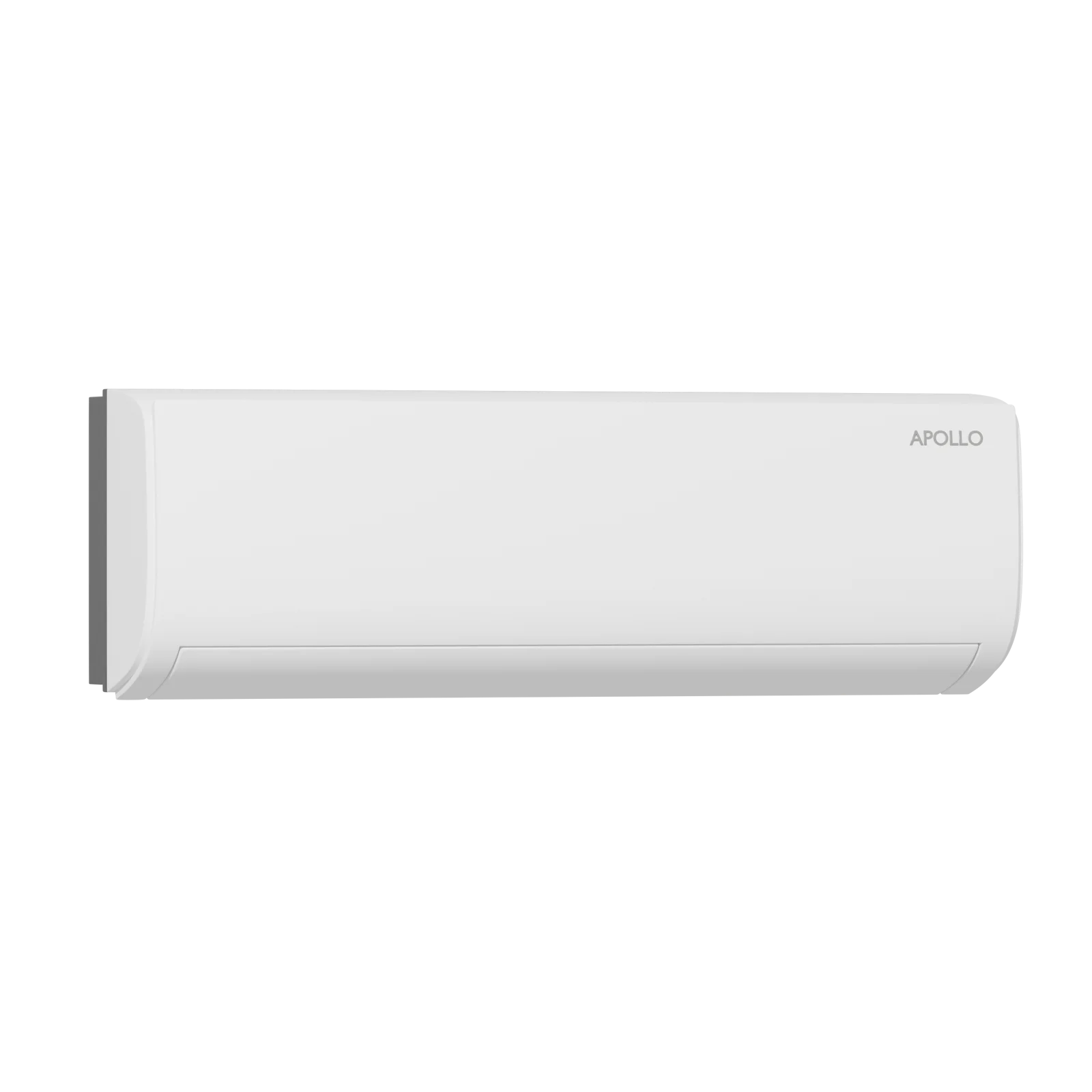

APOLLO Wall-Mounted Fan Coil Unit
AP-WALL-FCU-P
Homeowners can buy directly at mbtek.com. Installers, contractors and other trade customers: use the contact form, email or phone. info@apolloheatpumps.com · 1-888-301-0737
Image 1 of 7Product overview
APOLLO Wall-Mounted Fan Coil Unit
The APOLLO Wall-Mounted Fan Coil Unit is designed for efficient hydronic heating and cooling without ductwork. Its clean wall-mounted design delivers quiet room-by-room comfort, simple installation, and reliable performance for homes, offices, bedrooms, garages, workshops, and light commercial spaces.
Key Benefits
- Wall-mounted design for a clean, space-saving installation
- Designed for hydronic heating and cooling in residential and light commercial spaces
- Compatible with air-to-water heat pump systems and other hydronic setups
- No ductwork required, making installation simpler than traditional forced-air systems
- Ideal for room-by-room comfort in bedrooms, offices, living areas, garages, and workshops
- Quiet operation for comfortable indoor environments
- 3-speed fan control allows adjustable airflow for heating and cooling
- Integrated washable air filter helps simplify maintenance
- Built-in condensate drain pan with flexible drain tubing included for cooling operation
- Durable construction with galvanized steel frame, copper coils, and aluminum fins
- Simple 2-pipe or 4-pipe hydronic installation with standard water connections
- Compatible with standard 24VAC FCU thermostats for system control
Remote control and thermostat not included. Requires a compatible 24VAC FCU thermostat, purchased separately.
Models and variants
| Model | Available attributes |
|---|---|
| AP-WALL-FCU-18K | Cooling Capacity: 1.5 Ton (est. 400-900 ft²) / Pipe Configuration: 2-Pipe |
| AP-WALL-FCU-36K | Cooling Capacity: 3 Ton (est. 800-1,300 ft²) / Pipe Configuration: 2-Pipe |
| AP-WALL-FCU-18K-4P | Cooling Capacity: 1.5 Ton (est. 400-900 ft²) / Pipe Configuration: 4-Pipe |
| AP-WALL-FCU-36K-4P | Cooling Capacity: 3 Ton (est. 800-1,300 ft²) / Pipe Configuration: 4-Pipe |
| AP-WALL-FCU-72K-4P | Cooling Capacity: 6 Ton (est. 1,700-2,800 ft²) / Pipe Configuration: 4-Pipe |
| AP-WALL-FCU-72K | Cooling Capacity: 6 Ton (est. 1,700-2,800 ft²) / Pipe Configuration: 2-Pipe |
Specifications
| Specification | 1.5 Ton | 3 Ton |
|---|---|---|
| Model | AP-FCU-18K | AP-FCU-36K |
| Cooling | 12,000 BTU | 18,500 BTU |
| Heating | 18,400 BTU | 31,500 BTU |
| Airflow | 225-400 CFM | 250-600 CFM |
| Noise | 33-45 dB | 33-47 dB |
| Power | 33 W | 35 W |
| Weight | 20 lb | 30 lb |
| Coverage | 400-900 ft² | 800-1,300 ft² |
| Height (A) | 10.4 in | 12.4 in |
| Width (B) | 33.5 in | 38.4 in |
| Depth (C) | 8.5 in | 8.5 in |
Applies to all models
| Power supply | 120 VAC |
|---|---|
| Thermostat control | 24 VAC (thermostat not included) |
| Maximum pressure | 200 PSI |
| Water connection | ½ in NPT |
| Fan | 3-speed |
| Coil | Copper with aluminum fins |
| Frame | Galvanized steel |
| Included | Washable filter, PEX ½ in compression adapter, condensate pan with 7 ft of ½ in drain tubing |
| Warranty | 1 year |
1.5 Ton
- Model
- AP-FCU-18K
- Cooling
- 12,000 BTU
- Heating
- 18,400 BTU
- Airflow
- 225-400 CFM
- Noise
- 33-45 dB
- Power
- 33 W
- Weight
- 20 lb
- Coverage
- 400-900 ft²
- Height (A)
- 10.4 in
- Width (B)
- 33.5 in
- Depth (C)
- 8.5 in
3 Ton
- Model
- AP-FCU-36K
- Cooling
- 18,500 BTU
- Heating
- 31,500 BTU
- Airflow
- 250-600 CFM
- Noise
- 33-47 dB
- Power
- 35 W
- Weight
- 30 lb
- Coverage
- 800-1,300 ft²
- Height (A)
- 12.4 in
- Width (B)
- 38.4 in
- Depth (C)
- 8.5 in
Applies to all models
- Power supply
- 120 VAC
- Thermostat control
- 24 VAC (thermostat not included)
- Maximum pressure
- 200 PSI
- Water connection
- ½ in NPT
- Fan
- 3-speed
- Coil
- Copper with aluminum fins
- Frame
- Galvanized steel
- Included
- Washable filter, PEX ½ in compression adapter, condensate pan with 7 ft of ½ in drain tubing
- Warranty
- 1 year
