APOLLO Floor Fan Coil Unit
AP-FLOOR-FCU-FP-P
Homeowners can buy directly at mbtek.com. Installers, contractors and other trade customers: use the contact form, email or phone. info@apolloheatpumps.com · 1-888-301-0737
Image 1 of 7Product overview
Simply the best floor-mounted fan coil on the market.
Designed in the USA.

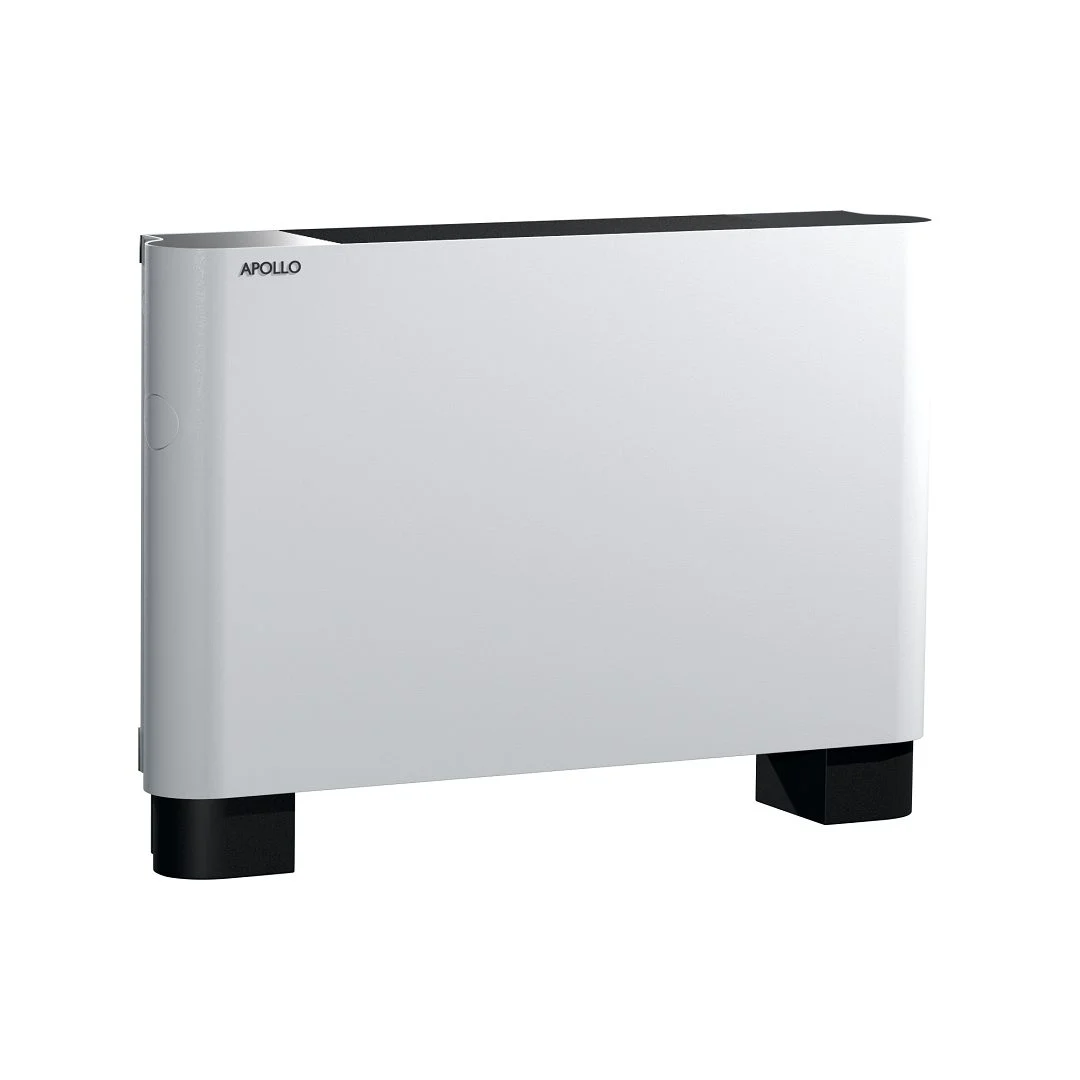

APOLLO Vertical Floor Fan Coil Unit
The APOLLO Vertical Floor Fan Coil Unit is a floor-mounted FCU designed for efficient hydronic heating and cooling. Its vertical cabinet design makes it a practical solution for spaces where wall, ceiling, or concealed installation is not ideal.
Built for use with air-to-water heat pumps, boilers, and chilled water systems, this vertical fan coil unit delivers quiet comfort, flexible controls, and reliable performance for residential and light commercial applications.
Key Benefits
- Vertical floor-mounted design for clean installation where wall or ceiling mounting is not preferred
- Hydronic heating and cooling for use with heat pumps, boilers, and chilled water systems
- Quiet operation for comfortable residential and light commercial environments
- 3-speed high-efficiency fan with 0-10VDC control for precise airflow management
- Simple 2-pipe or 4-pipe installation for straightforward system integration
- Built-in drain system for effective condensate management during cooling operation
- Durable galvanized steel frame with water-resistant construction for long-term reliability
- Washable air filter for easier maintenance and cleaner indoor air
Thermostat and remote control not included. Requires a compatible FCU thermostat.
Models and variants
| Model | Available attributes |
|---|---|
| AP-FLOOR-FCU-FP51 | Cooling Capacity: 1.5 Ton (est. 450-675 ft²) / Pipe Configuration: 2-Pipe |
| AP-FLOOR-FCU-FP102 | Cooling Capacity: 3 Ton (est. 900-1,350 ft²) / Pipe Configuration: 2-Pipe |
| AP-FLOOR-FCU-FP51-4P | Cooling Capacity: 1.5 Ton (est. 450-675 ft²) / Pipe Configuration: 4-Pipe |
| AP-FLOOR-FCU-FP102-4P | Cooling Capacity: 3 Ton (est. 900-1,350 ft²) / Pipe Configuration: 4-Pipe |
Specifications
| Specification | 1.5 Ton | 3 Ton |
|---|---|---|
| Cooling | 9,000 BTU | 18,000 BTU |
| Heating | 13,500 BTU | 27,000 BTU |
| Airflow | 300 CFM | 600 CFM |
| Noise | 30–45 dB | 35–50 dB |
| Weight | 33.2 lb | 45.4 lb |
| Coverage | 450–675 ft² | 900–1,350 ft² |
| Width (A) | 35 1/2 in | 49 9/32 in |
| Height | 24 13/16 in | 24 13/16 in |
| Depth | 7 1/16 in | 7 1/16 in |
| Foot height (D) | 3 1/8 in | 3 1/8 in |
Applies to all models
| Connections | ½ in NPT |
|---|---|
| Power supply | 120 VAC |
| Control | 24 VAC or 0–10 VDC (thermostat not included) |
| Pressure rating | 200 PSI |
| Fan | 3-speed |
| Filter | Washable air filter |
| Coil | Copper with aluminum wave fins |
| Frame | Galvanized steel |
| Mounting | Floor legs, or wall mount (anchors, bolts, and nuts not included) |
| Warranty | 1 year |
| Cooling water | Not below 44°F |
| Heating water | Not above 176°F |
1.5 Ton
- Cooling
- 9,000 BTU
- Heating
- 13,500 BTU
- Airflow
- 300 CFM
- Noise
- 30–45 dB
- Weight
- 33.2 lb
- Coverage
- 450–675 ft²
- Width (A)
- 35 1/2 in
- Height
- 24 13/16 in
- Depth
- 7 1/16 in
- Foot height (D)
- 3 1/8 in
3 Ton
- Cooling
- 18,000 BTU
- Heating
- 27,000 BTU
- Airflow
- 600 CFM
- Noise
- 35–50 dB
- Weight
- 45.4 lb
- Coverage
- 900–1,350 ft²
- Width (A)
- 49 9/32 in
- Height
- 24 13/16 in
- Depth
- 7 1/16 in
- Foot height (D)
- 3 1/8 in
Applies to all models
- Connections
- ½ in NPT
- Power supply
- 120 VAC
- Control
- 24 VAC or 0–10 VDC (thermostat not included)
- Pressure rating
- 200 PSI
- Fan
- 3-speed
- Filter
- Washable air filter
- Coil
- Copper with aluminum wave fins
- Frame
- Galvanized steel
- Mounting
- Floor legs, or wall mount (anchors, bolts, and nuts not included)
- Warranty
- 1 year
- Cooling water
- Not below 44°F
- Heating water
- Not above 176°F
