APOLLO Concealed Fan Coil Unit
AP-CONC-FCU
Homeowners can buy directly at mbtek.com. Installers, contractors and other trade customers: use the contact form, email or phone. info@apolloheatpumps.com · 1-888-301-0737
Image 1 of 10Product overview

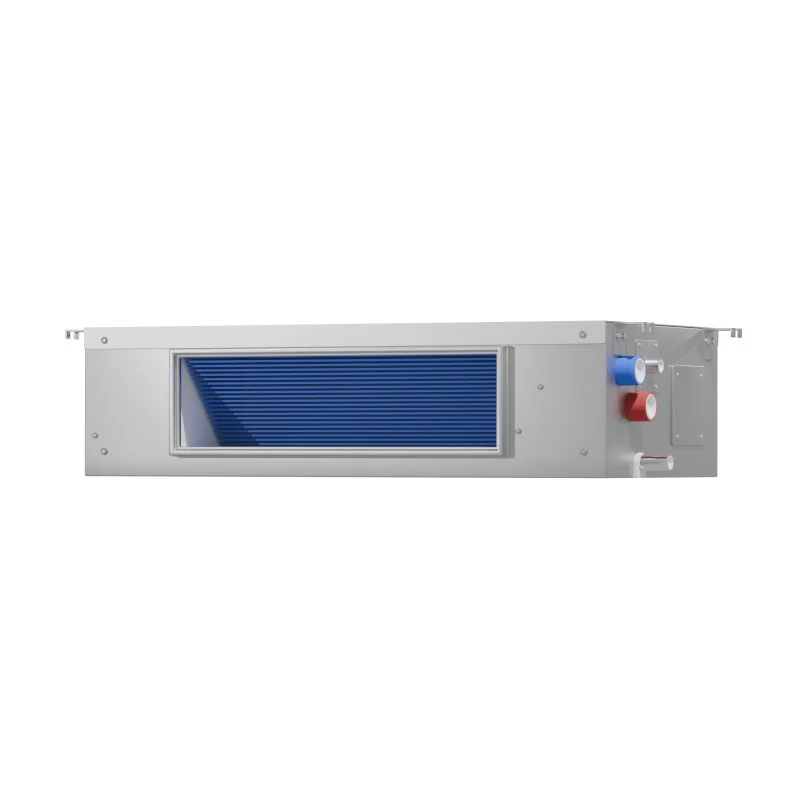

APOLLO Horizontal Concealed Hydronic Fan Coil Unit
The APOLLO Horizontal Concealed Hydronic Fan Coil Unit is designed for hidden ceiling installation, delivering quiet and efficient hydronic heating and cooling with clean, discreet integration. Available in 1.5 Ton, 3.5 Ton, and 6 Ton capacities, it is ideal for residential, condo, office, and light commercial HVAC applications.
Key Benefits
- Horizontal concealed installation for a clean, modern interior design
- Designed for hydronic heating and cooling applications
- Compatible with air-to-water heat pump systems
- Quiet operation for discreet comfort in residential and commercial spaces
- EC motor with efficient variable-speed performance
- Simple 2-pipe or 4-pipe system for easy and flexible installation
- Air outlet plenum design supports ducted supply installation
- Durable construction with galvanized steel housing and copper-aluminum coil
Thermostat and remote control not included. Requires a compatible FCU thermostat.
Models and variants
| Model | Available attributes |
|---|---|
| AP-CONC-FCU-18K | Cooling Capacity: 1.5 Ton (est. 400-900 ft²) / Pipe Configuration: 2-Pipe |
| AP-CONC-FCU-42K | Cooling Capacity: 3.5 Ton (est. 1,000-1,700 ft²) / Pipe Configuration: 2-Pipe |
| AP-CONC-FCU-72K | Cooling Capacity: 6 Ton (est. 1,700-2,800 ft²) / Pipe Configuration: 2-Pipe |
| AP-CONC-FCU-18K-4P | Cooling Capacity: 1.5 Ton (est. 400-900 ft²) / Pipe Configuration: 4-Pipe |
| AP-CONC-FCU-42K-4P | Cooling Capacity: 3.5 Ton (est. 1,000-1,700 ft²) / Pipe Configuration: 4-Pipe |
| AP-CONC-FCU-72K-4P | Cooling Capacity: 6 Ton (est. 1,700-2,800 ft²) / Pipe Configuration: 4-Pipe |
Specifications
Pipe Configuration
Pipe Configuration: 2-Pipe
| Specification | 1.5T | 3.5T | 6T |
|---|---|---|---|
| Cooling capacity (KBTU/h) | 11.12 | 19.62 | 36.85 |
| Heating capacity (KBTU/h) | 17.98 | 38.11 | 60.39 |
| Power input (W; 0.048-0.20 in. w.c.) | 16.7–32.4 | 52.1–82.2 | 92.7–155.5 |
| Air flow (CFM) | 320 | 642 | 1260 |
| Noise (dB(A); 0.048-0.20 in. w.c.) | 18–42 | 29–50 | 33–51 |
| Water flow (GPM) | 2.62 | 4.41 | 8.15 |
| Coil dimensions (L × H × W, in.) | 23 × 8½ × 1½ | 35½ × 8½ × 1½ | 61 × 8½ × 1½ |
| Unit weight (lb) | 26.7 | 34.2 | 56.2 |
| Static pressure (in. w.c.) | 0–0.20 | 0–0.20 | 0–0.20 |
1.5T
- Cooling capacity (KBTU/h)
- 11.12
- Heating capacity (KBTU/h)
- 17.98
- Power input (W; 0.048-0.20 in. w.c.)
- 16.7–32.4
- Air flow (CFM)
- 320
- Noise (dB(A); 0.048-0.20 in. w.c.)
- 18–42
- Water flow (GPM)
- 2.62
- Coil dimensions (L × H × W, in.)
- 23 × 8½ × 1½
- Unit weight (lb)
- 26.7
- Static pressure (in. w.c.)
- 0–0.20
3.5T
- Cooling capacity (KBTU/h)
- 19.62
- Heating capacity (KBTU/h)
- 38.11
- Power input (W; 0.048-0.20 in. w.c.)
- 52.1–82.2
- Air flow (CFM)
- 642
- Noise (dB(A); 0.048-0.20 in. w.c.)
- 29–50
- Water flow (GPM)
- 4.41
- Coil dimensions (L × H × W, in.)
- 35½ × 8½ × 1½
- Unit weight (lb)
- 34.2
- Static pressure (in. w.c.)
- 0–0.20
6T
- Cooling capacity (KBTU/h)
- 36.85
- Heating capacity (KBTU/h)
- 60.39
- Power input (W; 0.048-0.20 in. w.c.)
- 92.7–155.5
- Air flow (CFM)
- 1260
- Noise (dB(A); 0.048-0.20 in. w.c.)
- 33–51
- Water flow (GPM)
- 8.15
- Coil dimensions (L × H × W, in.)
- 61 × 8½ × 1½
- Unit weight (lb)
- 56.2
- Static pressure (in. w.c.)
- 0–0.20
Pipe Configuration: 4-Pipe
| Specification | 1.5T | 3.5T | 6T |
|---|---|---|---|
| 3+1 cooling capacity (KBTU/h) | 9.49 | 18.97 | 37.87 |
| 3+1 heating capacity (KBTU/h) | 6.48 | 12.62 | 24.91 |
| 2+2 cooling capacity (KBTU/h) | 6.14 | 12.97 | 26.27 |
| 2+2 heating capacity (KBTU/h) | 9.55 | 19.45 | 38.56 |
| Power input (W; 0.12 in. w.c.) | 50 | 93 | 183 |
| Air flow (CFM) | 315 | 630 | 1230 |
| Noise (dB(A)) | 39 | 45 | 50 |
| Water flow (GPM) | 2.10 | 4.21 | 8.42 |
| Coil dimensions (L × H × W, in.) | 22¾ × 4¼ × 8 | 35½ × 4¼ × 8 | 61 × 4¼ × 8 |
| Unit weight (lb) | 29.1 | 37.5 | 63.5 |
| Static pressure (in. w.c.) | 0.12 | 0.12 | 0.12 |
1.5T
- 3+1 cooling capacity (KBTU/h)
- 9.49
- 3+1 heating capacity (KBTU/h)
- 6.48
- 2+2 cooling capacity (KBTU/h)
- 6.14
- 2+2 heating capacity (KBTU/h)
- 9.55
- Power input (W; 0.12 in. w.c.)
- 50
- Air flow (CFM)
- 315
- Noise (dB(A))
- 39
- Water flow (GPM)
- 2.10
- Coil dimensions (L × H × W, in.)
- 22¾ × 4¼ × 8
- Unit weight (lb)
- 29.1
- Static pressure (in. w.c.)
- 0.12
3.5T
- 3+1 cooling capacity (KBTU/h)
- 18.97
- 3+1 heating capacity (KBTU/h)
- 12.62
- 2+2 cooling capacity (KBTU/h)
- 12.97
- 2+2 heating capacity (KBTU/h)
- 19.45
- Power input (W; 0.12 in. w.c.)
- 93
- Air flow (CFM)
- 630
- Noise (dB(A))
- 45
- Water flow (GPM)
- 4.21
- Coil dimensions (L × H × W, in.)
- 35½ × 4¼ × 8
- Unit weight (lb)
- 37.5
- Static pressure (in. w.c.)
- 0.12
6T
- 3+1 cooling capacity (KBTU/h)
- 37.87
- 3+1 heating capacity (KBTU/h)
- 24.91
- 2+2 cooling capacity (KBTU/h)
- 26.27
- 2+2 heating capacity (KBTU/h)
- 38.56
- Power input (W; 0.12 in. w.c.)
- 183
- Air flow (CFM)
- 1230
- Noise (dB(A))
- 50
- Water flow (GPM)
- 8.42
- Coil dimensions (L × H × W, in.)
- 61 × 4¼ × 8
- Unit weight (lb)
- 63.5
- Static pressure (in. w.c.)
- 0.12
Applies to all models
| Cooling rating condition | 44.6°F entering water |
|---|---|
| Heating rating condition | 140°F entering water |
- Cooling rating condition
- 44.6°F entering water
- Heating rating condition
- 140°F entering water
