Fan Coil Units
APOLLO Ceiling Cassette Fan Coil Unit
AP-CEI-FCU-P
Homeowners can buy directly at mbtek.com. Installers, contractors and other trade customers: use the contact form, email or phone. info@apolloheatpumps.com · 1-888-301-0737
Image 1 of 8Product overview

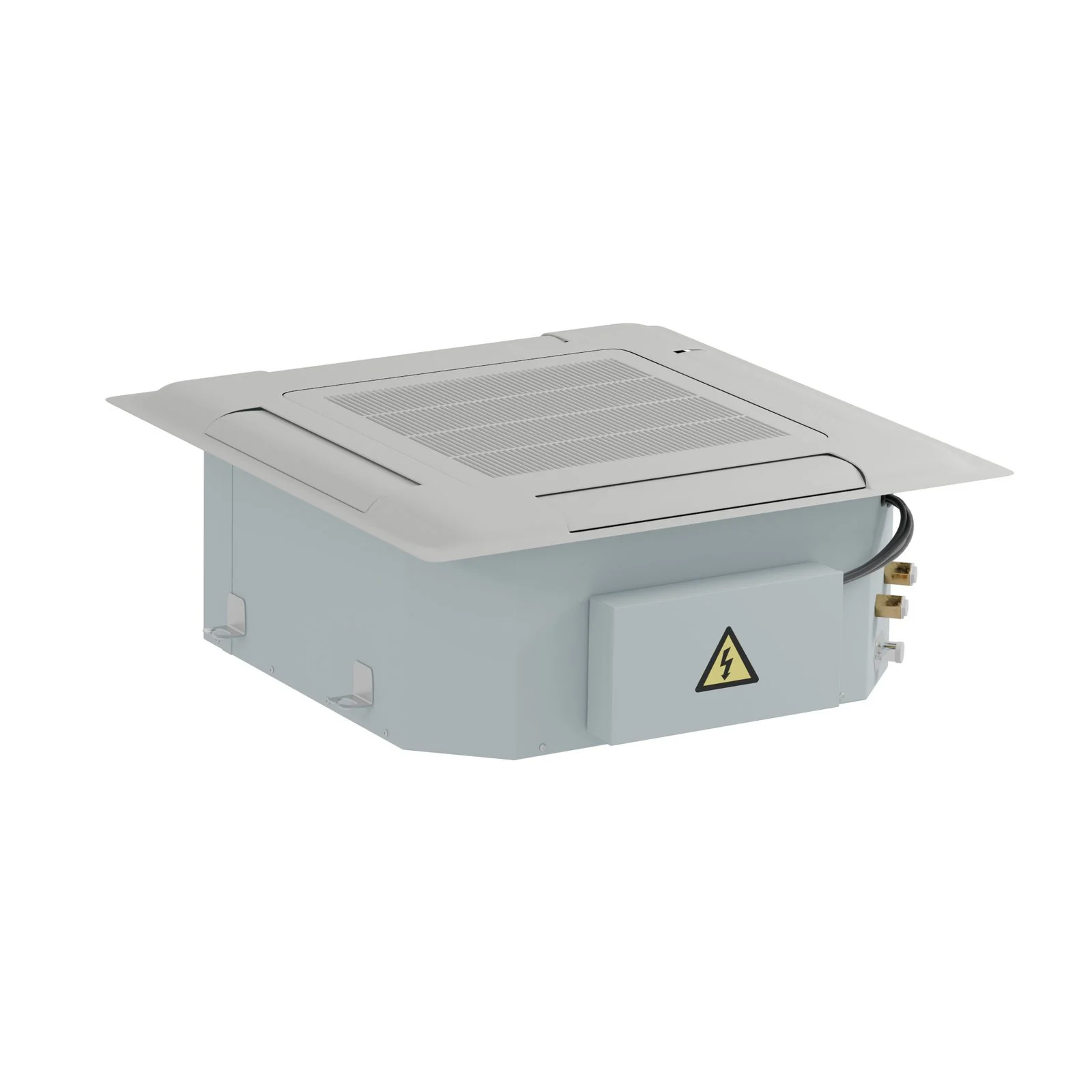

APOLLO Ceiling Cassette Fan Coil Unit
The APOLLO Ceiling Cassette Fan Coil Unit is designed for efficient hydronic heating and cooling without ductwork. Its compact ceiling-mounted design provides quiet comfort, clean integration, and 4-way air distribution for homes, offices, garages, and light commercial spaces.
Key Benefits
- Ceiling cassette design for a clean, discreet installation
- Designed for hydronic heating and cooling applications
- Compatible with air-to-water heat pump systems
- 4-way airflow helps distribute air evenly throughout the room
- No ductwork required for simpler installation
- Quiet operation for comfortable indoor environments
- 3-speed high-efficiency fan for adjustable airflow control
- Built-in condensate pump and water level switch for cooling operation
- Integrated washable air filter for easier maintenance
- Compact design with pre-drilled mounting holes to simplify ceiling installation
- Durable construction with copper coil, aluminum fins, and galvanized steel frame
Remote control and thermostat not included. Requires a compatible 120VAC FCU thermostat, purchased separately.
Models and variants
| Model | Available attributes |
|---|---|
| AP-CEI-FCU-32K | Cooling Capacity: 2 Ton (est. 900-1,500 ft²) / Pipe Configuration: 2-Pipe |
| AP-CEI-FCU-64K | Cooling Capacity: 4 Ton (est. 1,500-2,300 ft²) / Pipe Configuration: 2-Pipe |
| AP-CEI-FCU-32K-4P | Cooling Capacity: 2 Ton (est. 900-1,500 ft²) / Pipe Configuration: 4-Pipe |
| AP-CEI-FCU-64K-4P | Cooling Capacity: 4 Ton (est. 1,500-2,300 ft²) / Pipe Configuration: 4-Pipe |
Specifications
| Specification | 2 Ton | 4 Ton |
|---|---|---|
| Cooling | 17,000 BTU | 34,000 BTU |
| Heating | 24,500 BTU | 45,500 BTU |
| Airflow | 250–515 CFM | 500–1,000 CFM |
| Noise | 43 dB | 45 dB |
| Power | 72 W | 128 W |
| Water flow | 3.8 GPM | 7 GPM |
| Coverage | 900–1,500 ft² | 1,500–2,300 ft² |
| Length (A) | 31 1/2 in | 37 3/8 in |
| Width (B) | 28 5/16 in | 32 11/16 in |
| Body height (C) | 11 7/16 in | 11 13/16 in |
| Overall height (D) | 11 13/16 in | 12 3/16–12 13/32 in |
Applies to all models
| Connections | ¾ in FPT, PEX adapter included |
|---|---|
| Power supply | 120 VAC |
| Thermostat control | 120 VAC (thermostat not included) |
| Pressure rating | 200 PSI |
| Fan | 3-speed |
| Condensate | Built-in pump and water level switch |
| Filter | Washable air filter |
| Coil | Copper with aluminum wave fins |
| Frame | Galvanized steel |
| Mounting | Pre-drilled hanging holes |
| Warranty | 1 year |
| Side clearance | More than 39 in |
| Clearance above the unit | More than 1.9 in |
| Ceiling height | 98–137 in |
2 Ton
- Cooling
- 17,000 BTU
- Heating
- 24,500 BTU
- Airflow
- 250–515 CFM
- Noise
- 43 dB
- Power
- 72 W
- Water flow
- 3.8 GPM
- Coverage
- 900–1,500 ft²
- Length (A)
- 31 1/2 in
- Width (B)
- 28 5/16 in
- Body height (C)
- 11 7/16 in
- Overall height (D)
- 11 13/16 in
4 Ton
- Cooling
- 34,000 BTU
- Heating
- 45,500 BTU
- Airflow
- 500–1,000 CFM
- Noise
- 45 dB
- Power
- 128 W
- Water flow
- 7 GPM
- Coverage
- 1,500–2,300 ft²
- Length (A)
- 37 3/8 in
- Width (B)
- 32 11/16 in
- Body height (C)
- 11 13/16 in
- Overall height (D)
- 12 3/16–12 13/32 in
Applies to all models
- Connections
- ¾ in FPT, PEX adapter included
- Power supply
- 120 VAC
- Thermostat control
- 120 VAC (thermostat not included)
- Pressure rating
- 200 PSI
- Fan
- 3-speed
- Condensate
- Built-in pump and water level switch
- Filter
- Washable air filter
- Coil
- Copper with aluminum wave fins
- Frame
- Galvanized steel
- Mounting
- Pre-drilled hanging holes
- Warranty
- 1 year
- Side clearance
- More than 39 in
- Clearance above the unit
- More than 1.9 in
- Ceiling height
- 98–137 in
