APOLLO Wi-Fi Radiant Floor Thermostat

AP-TH-P3

Product overview

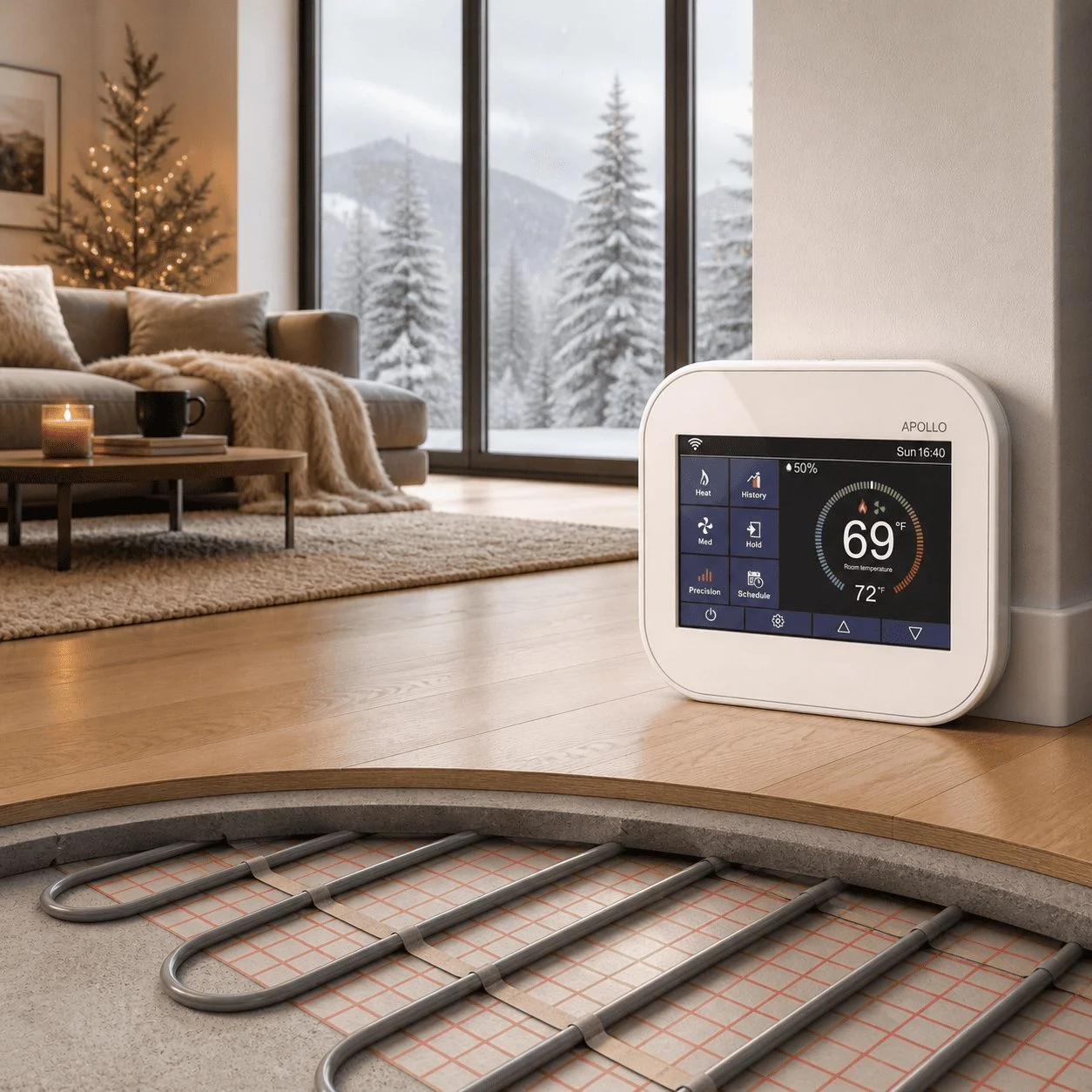

APOLLO Wi-Fi Radiant Floor Thermostat

Wi-Fi radiant floor thermostat for hydronic floor heating applications, combining floor-sensor support, touchscreen control, and remote access on the APOLLO thermostat platform.

Key Benefits

  • Radiant floor thermostat keyword focus for hydronic floor heating pages
  • Flexible power options with 12–24 V AC/DC or 110–240 V AC
  • 3.5" color touch screen with adaptive brightness and intuitive control
  • Wi-Fi, app, MQTT, BACnet, and Google Home for remote access and system integration
  • External floor sensor support for radiant floor, remote room, and outdoor sensing
  • Humidity sensing and freeze protection for better environmental awareness and system safety

Specifications

  • Application: Radiant floor thermostat for hydronic floor heating
  • Power Options: 12–24 V AC/DC or 110–240 V AC
  • System Control: 1 stage heat / 1 stage cool for motorized valve, heat pump, and oil, gas, or electric systems
  • Sensor Support: External 20 ft sensor for radiant floor, remote room, or outdoor use
  • Fan Control: 3-speed fan plus optional 0-10VDC fan control
  • Protocols: Wi-Fi, app, MQTT, BACnet, Google Home
  • Scheduling: 5/2, 7-day, and 24-hour programmable operation

Replace 120V Honeywell T6570, T6069, T6169, TB6575A, TB6575B, TB6575A1000, T6575D, T6575C, T6574B

Replace 12 to 24VAC/DC Honeywell T8570, TB8575A, TB8575A1000, T8574B, T8575C, T8575D

Replace 12 to 24VAC/DC Coleman Rv Camper Mach Thermostat 7330G3351, 6636-3441, 7330F3852, 8330-3362, 9430-3372

Models and variants

Available model options
ModelAvailable attributes
AP-THE-FCU-120-240VAC-RFTElectrical Supply: 120–230 V AC
AP-TH-4-12/24V-RFTElectrical Supply: 12–24 V AC/DC

Specifications

Technical specifications
ApplicationExternal sensor for a radiant floor, remote room, or outdoor temperature.
Display3.5 in color touchscreen
Power12–24 V AC/DC or 110–240 V AC
Built-in sensorsTemperature, humidity, and ambient light
External sensor20 ft sensor included
Temperature limit32–210 °F (0–99 °C)
ModesHeat, Cool, Vent, Dehumidify, Auto
Fan3-speed or 0–10 V DC, 30–100%
OutputsNormally open relays; 0–10 V DC for fan, valve, and damper
ConnectivityWi-Fi, app, MQTT, BACnet, Google Home
SchedulingSchedule, hold, and holiday
Languages7
Size4 1/4 × 3 1/2 × 1 1/4 in
Application
External sensor for a radiant floor, remote room, or outdoor temperature.
Display
3.5 in color touchscreen
Power
12–24 V AC/DC or 110–240 V AC
Built-in sensors
Temperature, humidity, and ambient light
External sensor
20 ft sensor included
Temperature limit
32–210 °F (0–99 °C)
Modes
Heat, Cool, Vent, Dehumidify, Auto
Fan
3-speed or 0–10 V DC, 30–100%
Outputs
Normally open relays; 0–10 V DC for fan, valve, and damper
Connectivity
Wi-Fi, app, MQTT, BACnet, Google Home
Scheduling
Schedule, hold, and holiday
Languages
7
Size
4 1/4 × 3 1/2 × 1 1/4 in
