Image 1 of 3Product overview

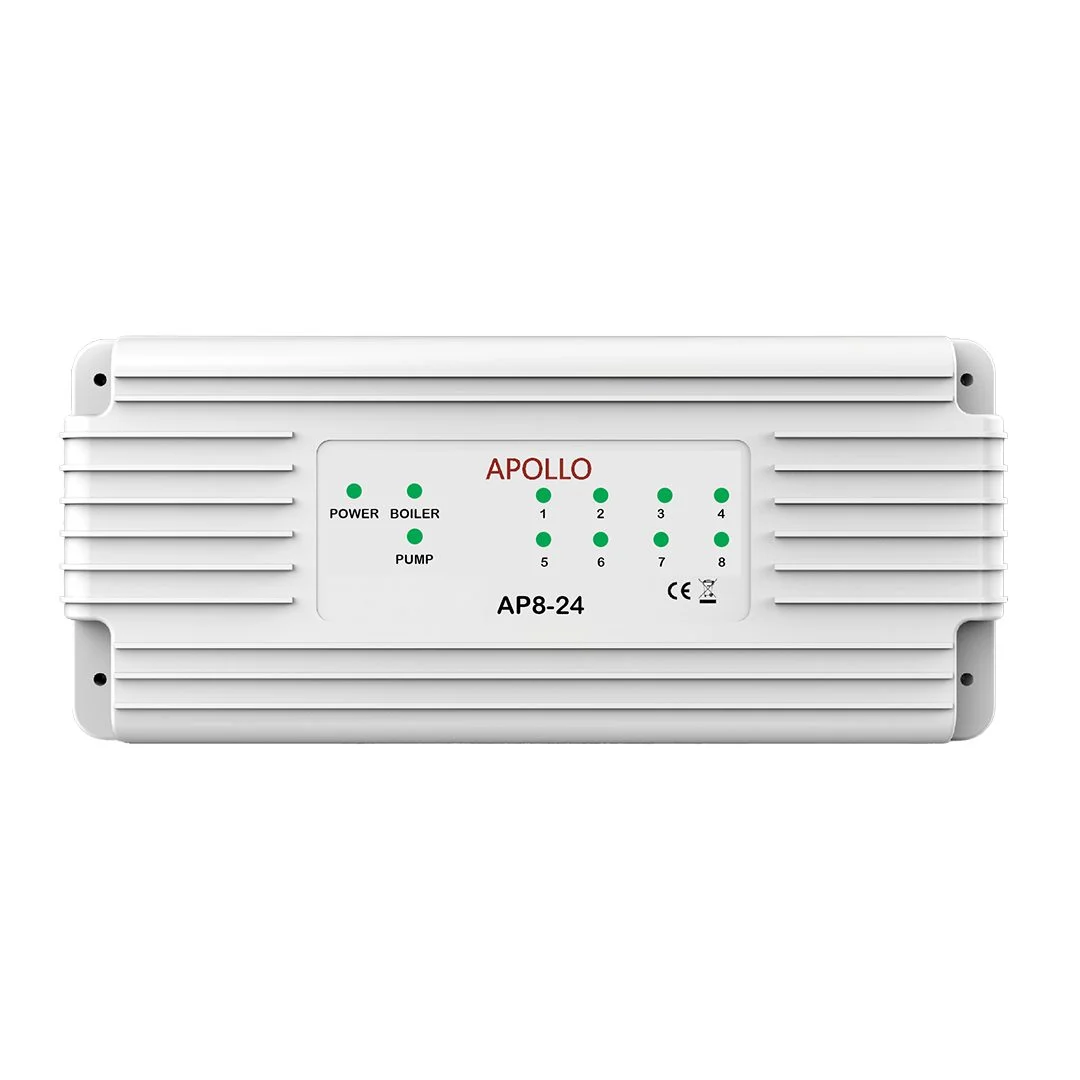

APOLLO 8 Zone Valve Control
Zone control box for coordinating up to eight APOLLO actuators and thermostats from one centralized wiring point above the manifold.
Key Benefits
- Connects up to 8 zones with support for 8 actuators, 8 thermostats, and 1 pump
- Centralizes manifold wiring for a cleaner and faster installation
- LED status display shows open zones at a glance
- Includes transformer and cable for straightforward setup
- Fuse protected with spare fuses included
- CSA / UL certified for added installation confidence
Specifications
- Power Supply: 120VAC input power plug adapter included / 24VDC control
- Zone Capacity: 8 actuators + 8 thermostats + 1 pump
- Transformer: 5A transformer with 15 ft cable and US plug
- Control Transformer Rating: 120VA
- Installation: Mounted above the manifold to centralize connections
- Compatibility: APOLLO actuators and APOLLO thermostats
Specifications
| Power supply | 24VDC, 50/60Hz, 10A |
|---|---|
| Boiler call output | 5A passive |
| Circulating pump output | 24VDC/5A |
| Common terminal | 1 normally-open, no-power-linkage |
| Circuits (loops) | 8 |
| Actuators supported | Up to 8 per circuit |
| Output delay | 200 seconds |
| Included | 5A transformer, 15 ft cable, US plugs |
| Certification | CSA / UL |
- Power supply
- 24VDC, 50/60Hz, 10A
- Boiler call output
- 5A passive
- Circulating pump output
- 24VDC/5A
- Common terminal
- 1 normally-open, no-power-linkage
- Circuits (loops)
- 8
- Actuators supported
- Up to 8 per circuit
- Output delay
- 200 seconds
- Included
- 5A transformer, 15 ft cable, US plugs
- Certification
- CSA / UL
