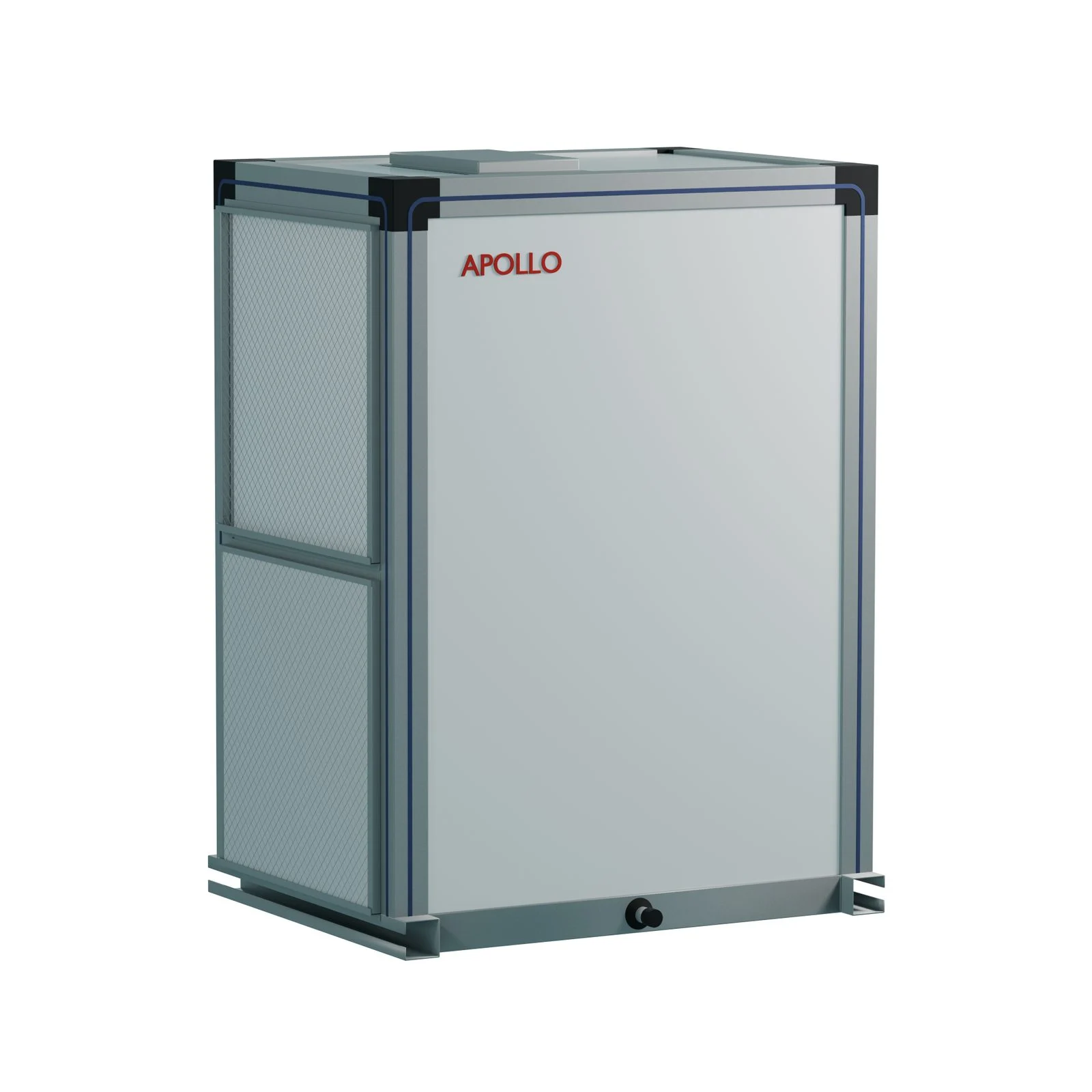

CENTRAL AIR HANDLING UNIT - 6 TON (APOLLO AHU)

High-performance hydronic air handling unit designed for larger central duct systems, delivering high-capacity heating, cooling, humidity control, and integrated comfort functions with quiet operation and seamless APOLLO heat pump integration.

Key Benefits

  • Larger hydronic AHU for bigger residential and light commercial ducted systems
  • 2400 CFM nominal airflow with 2.0 in. w.g. rated external static pressure
  • Expanded hydronic coil capacity up to 460,000 BTU for high-output heating and cooling
  • Integrated comfort functions for heating, cooling, humidification, dehumidification, backup heating, and evaporative cooling
  • High-efficiency fan motor with variable speed drive for precise duct balancing
  • Designed for use with APOLLO air-to-water heat pump systems and smart thermostat control

Specifications

  • Capacity: 6 Ton
  • System Type: Hydronic air handling unit
  • Application: Larger residential and light commercial ducted systems
  • Nominal Airflow: 2400 CFM
  • Hydronic Coil: 20 in. x 32 in. x 6 in., up to 460,000 BTU
  • Recommended Flow Rate: Minimum 21.2 GPM
  • Filter Size: 20 in. x 24 in. x 2 in., 2-pack MERV 8 pleated
  • Connections: 1 in. FPT female pipe thread
  • Power Supply: 220V, 60 Hz
  • Breaker Requirement: 60A
  • Flow Direction: Upflow standard, downflow and sideflow special order

Models and variants

Available model options
ModelAvailable attributes
AP-AHU-6TFlow Direction: Upflow (Standard)
AP-AHU-6T-DOWN-SPFlow Direction: Downflow (Special Order)
AP-AHU-6T-SIDE-SPFlow Direction: Sideflow (Special Order)

Specifications

Technical specifications
ApplicationLarger residential and light commercial ducted systems
Nominal airflow2,400 CFM at 2.0 in. w.g.
Airflow per ton400 CFM/ton
Outlet duct16 × 14 in, 1.50 ft²
Hydronic coil20 × 32 × 6 in, up to 460,000 BTU
Recommended flow21.2 GPM minimum
Backup heat10 kW in two 5 kW banks, 10-minute staging delay
HumidifierWet film, valve open 5 seconds every 5 minutes, 5 W
Fan motorHigh-efficiency variable-speed drive
Filter20 × 24 × 2 in MERV 8 pleated, 2-pack
Connections / power1 in FPT / 220V, 60Hz, 60A breaker
Power terminal10,800 W
Wire#8 AWG, #6 AWG on longer runs
Control24 VAC, 3-speed
Flow directionUpflow standard; downflow/sideflow special order
Return / dischargeLeft return, top discharge, condensate pan with P-trap
Weight165 lb unit, 190 lb total
Cabinet39 3/8 × 27 9/16 × 43 5/16 in high
FunctionsHeat, cool, humidify, dehumidify, backup heat, evaporative cooling
Application
Larger residential and light commercial ducted systems
Nominal airflow
2,400 CFM at 2.0 in. w.g.
Airflow per ton
400 CFM/ton
Outlet duct
16 × 14 in, 1.50 ft²
Hydronic coil
20 × 32 × 6 in, up to 460,000 BTU
Recommended flow
21.2 GPM minimum
Backup heat
10 kW in two 5 kW banks, 10-minute staging delay
Humidifier
Wet film, valve open 5 seconds every 5 minutes, 5 W
Fan motor
High-efficiency variable-speed drive
Filter
20 × 24 × 2 in MERV 8 pleated, 2-pack
Connections / power
1 in FPT / 220V, 60Hz, 60A breaker
Power terminal
10,800 W
Wire
#8 AWG, #6 AWG on longer runs
Control
24 VAC, 3-speed
Flow direction
Upflow standard; downflow/sideflow special order
Return / discharge
Left return, top discharge, condensate pan with P-trap
Weight
165 lb unit, 190 lb total
Cabinet
39 3/8 × 27 9/16 × 43 5/16 in high
Functions
Heat, cool, humidify, dehumidify, backup heat, evaporative cooling
