APOLLO Central Air Handling Unit — 3.5 Ton
AP-AHU-3.5TON-P
Homeowners can buy directly at mbtek.com. Installers, contractors and other trade customers: use the contact form, email or phone. info@apolloheatpumps.com · 1-888-301-0737

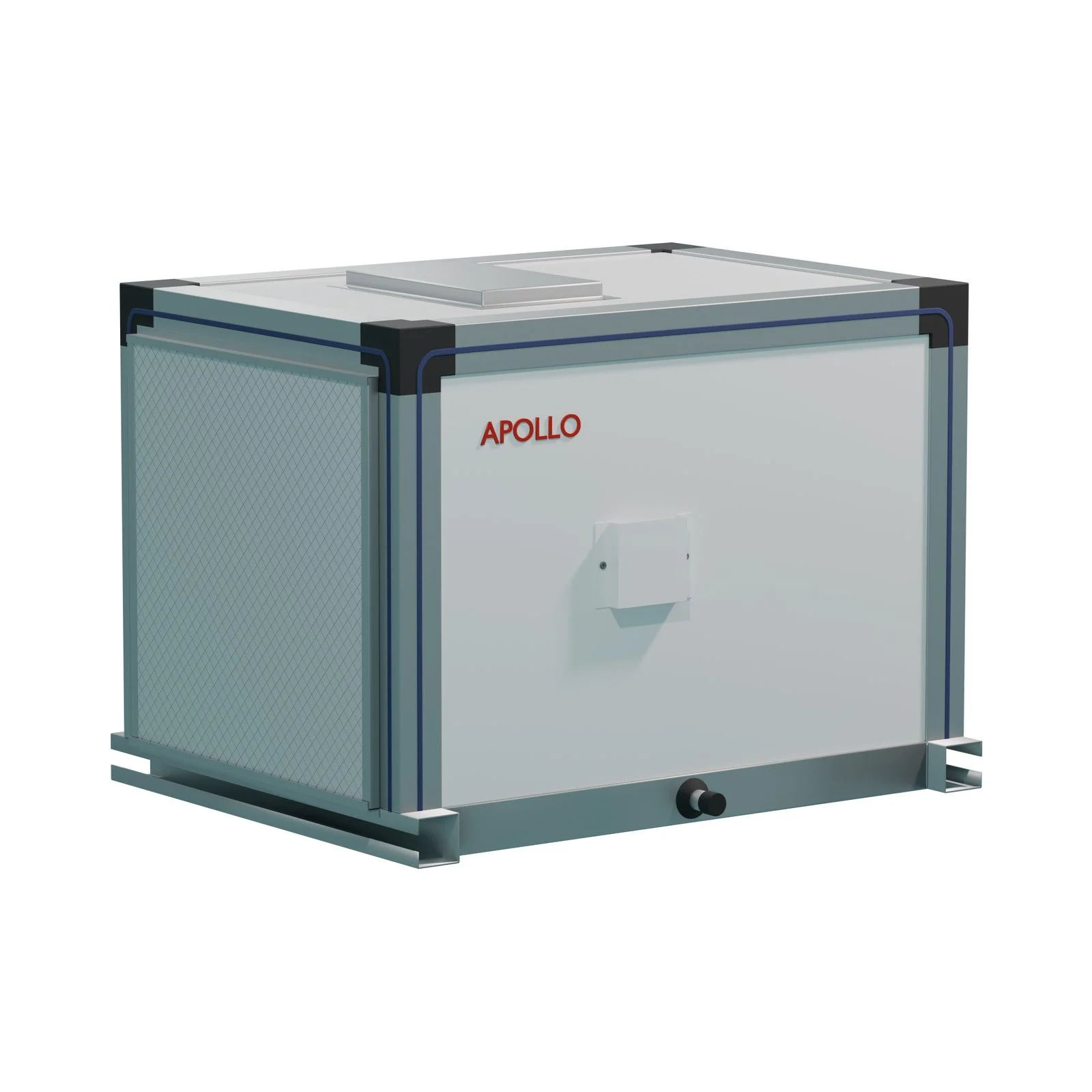

Image 1 of 5Product overview
CENTRAL AIR HANDLING UNIT - 3.5 TON (APOLLO AHU)
High-performance hydronic air handler designed for residential and light commercial central duct systems, delivering efficient heating and cooling with quiet operation and seamless APOLLO heat pump integration.
Key Benefits
- Residential and light commercial hydronic air handler for central duct systems
- 1400 CFM nominal airflow with a 400 CFM per ton airflow-to-tonnage ratio
- High-efficiency 800W fan motor with factory-preset speed control for duct balancing
- Hydronic coil capacity up to 193,600 BTU for efficient heat transfer
- Left return and top discharge configuration with condensate pan and P-trap
- Designed for use with APOLLO air-to-water heat pump systems and smart thermostat control
Specifications
- Capacity: 3.5 Ton
- System Type: Hydronic air handling unit
- Application: Residential and light commercial ducted systems
- Nominal Airflow: 1400 CFM
- Hydronic Coil: 22 in. x 22 in. x 5 in., up to 193,600 BTU
- Recommended Flow Rate: Minimum 17.6 GPM
- Filter Size: 24 in. x 24 in. x 1 in., 2-pack MERV 8 pleated
- Connections: 1 in. FPT female pipe thread
- Power Supply: 220V, 60 Hz
- Breaker Requirement: 15A
- Flow Direction: Upflow standard, downflow and sideflow special order
Models and variants
| Model | Available attributes |
|---|---|
| AP-AHU-3.5TON | Flow Direction: Upflow (Standard) |
| AP-AHU-3.5TON-DOWN-SP | Flow Direction: Downflow (Special Order) |
| AP-AHU-3.5TON-SIDE-SP | Flow Direction: Sideflow (Special Order) |
Specifications
| Application | Residential and light commercial ducted systems |
|---|---|
| Nominal airflow | 1,400 CFM (400 CFM/Ton) |
| External static pressure | 1.0 in w.g. |
| Outlet duct | 12 × 10 in, 0.875 ft² |
| Hydronic coil | 22 × 22 × 5 in, up to 193,600 BTU |
| Recommended flow | 17.6 GPM minimum |
| Fan motor | 800 W EC, variable speed, 3 factory-preset stages |
| Filter | 24 × 24 × 1 in MERV 8 pleated, 2-pack |
| Connections / power | 1 in FPT / 220V, 60Hz, 15A breaker |
| Wire | #12 AWG |
| Control | 24 VAC, 3-speed |
| Flow direction | Upflow standard; downflow/sideflow special order |
| Return / discharge | Left return, top discharge, condensate pan with P-trap |
| Weight | 145 lb unit, 172 lb total |
| Cabinet | 28 in wide × 37 in high |
| Functions | Heat and cool |
- Application
- Residential and light commercial ducted systems
- Nominal airflow
- 1,400 CFM (400 CFM/Ton)
- External static pressure
- 1.0 in w.g.
- Outlet duct
- 12 × 10 in, 0.875 ft²
- Hydronic coil
- 22 × 22 × 5 in, up to 193,600 BTU
- Recommended flow
- 17.6 GPM minimum
- Fan motor
- 800 W EC, variable speed, 3 factory-preset stages
- Filter
- 24 × 24 × 1 in MERV 8 pleated, 2-pack
- Connections / power
- 1 in FPT / 220V, 60Hz, 15A breaker
- Wire
- #12 AWG
- Control
- 24 VAC, 3-speed
- Flow direction
- Upflow standard; downflow/sideflow special order
- Return / discharge
- Left return, top discharge, condensate pan with P-trap
- Weight
- 145 lb unit, 172 lb total
- Cabinet
- 28 in wide × 37 in high
- Functions
- Heat and cool
