APOLLO Series - Buffer Tank

The APOLLO BF series tanks are an essential component for properly operating the hydronic heat pump system. When very low or no-load conditions occur, the buffer provides time for the heat pump to react and shut down correctly without spiking temperature. In winter, it also helps defrost the cycle.

The insulation prevents condensation and heat loss. These tanks are designed with everlasting corrosion resistance and come equipped with a sensor well.

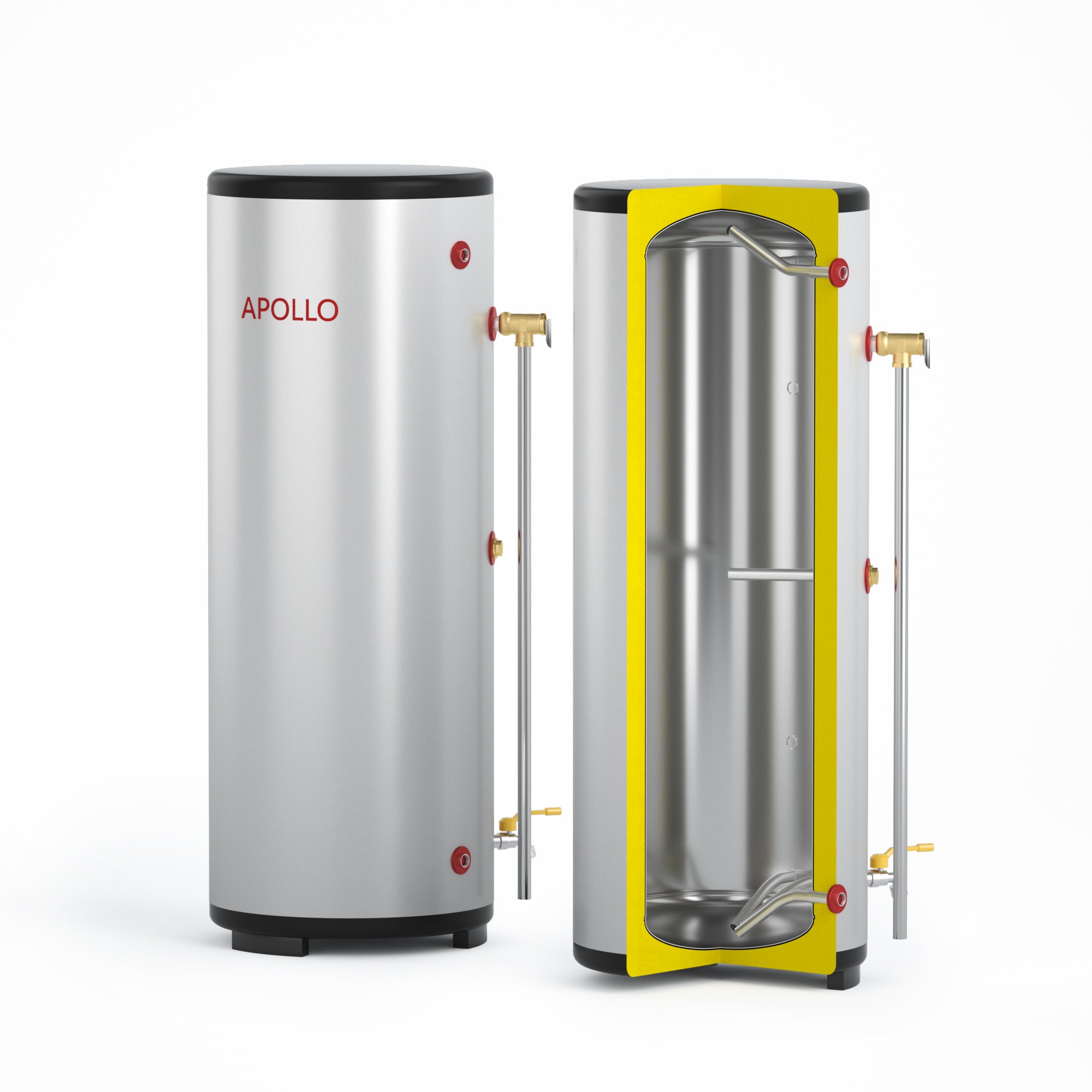

BF175 - Stainless Buffer Tank - 175 Gal

• Volume: 175 gal

• Inner Tank Material: SS316, Thickness: 1/16”

• Outer Jacket Material: Painted Galvanized Steel, Thickness: 1/32”

• Insulation Thickness: 2”

• Connections: NPT female

• Preinstalled Plugs: In all additional connections (except the 2 main ports)

• Equipped with: A drain valve and a 3/4" Relief Valve CSA/UL 125psi, 210°F

• Available Configurations:

  • Without Coil: AP-BF175-0

Technical Specifications:

Both models are now available in two configurations: without coil and with 2 internal coils, providing flexibility to meet different system requirements.

Warranty: 10 years
